Body Sensor Reset

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON"
  1. Connect KDS to Data Link Connector (DLC).

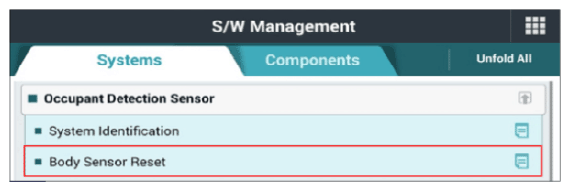

  2. Perform "Body Sensor Reset" in "Vehicle S/W management".

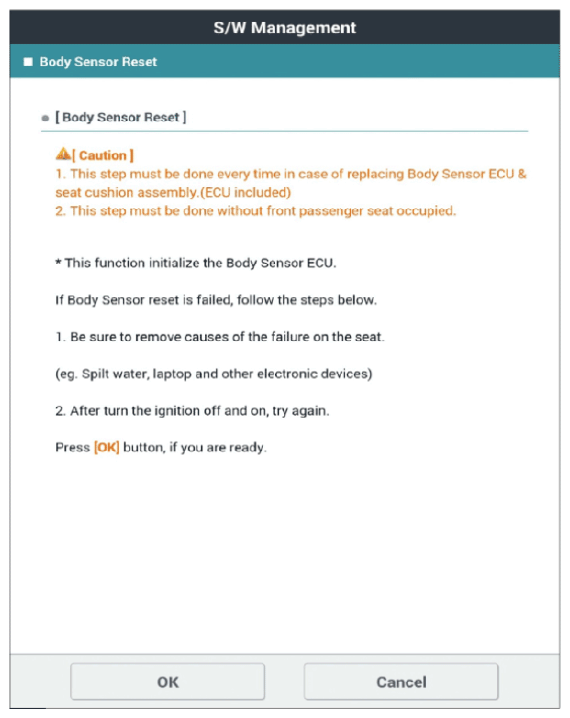

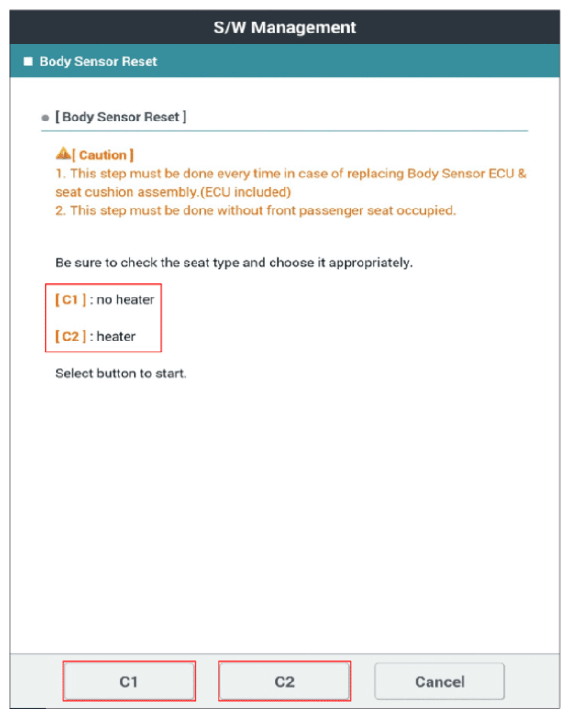

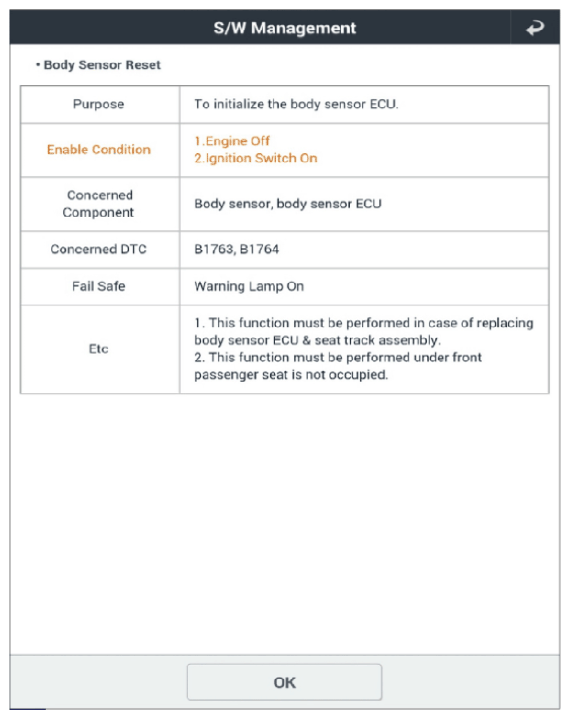

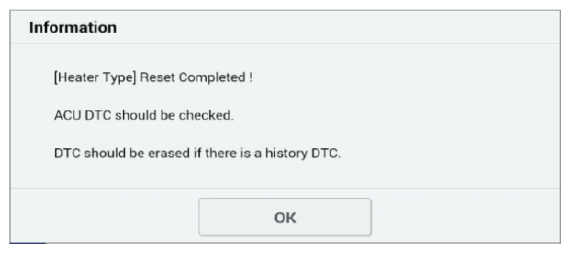

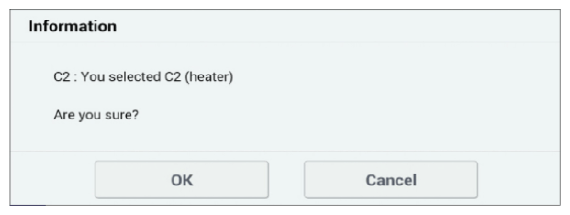

 Fig.1 to 6
G14568707Courtesy of KIA MOTORS AMERICA, INC.
G14568708Courtesy of KIA MOTORS AMERICA, INC.
G14568709Courtesy of KIA MOTORS AMERICA, INC.
G14568710Courtesy of KIA MOTORS AMERICA, INC.
G14568711Courtesy of KIA MOTORS AMERICA, INC.
G14568712Courtesy of KIA MOTORS AMERICA, INC.
