Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

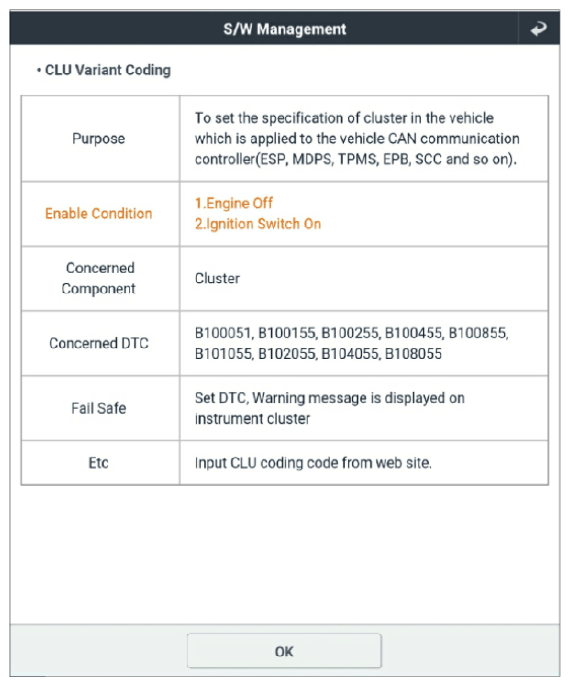

G14565400Courtesy of KIA MOTORS AMERICA, INC.

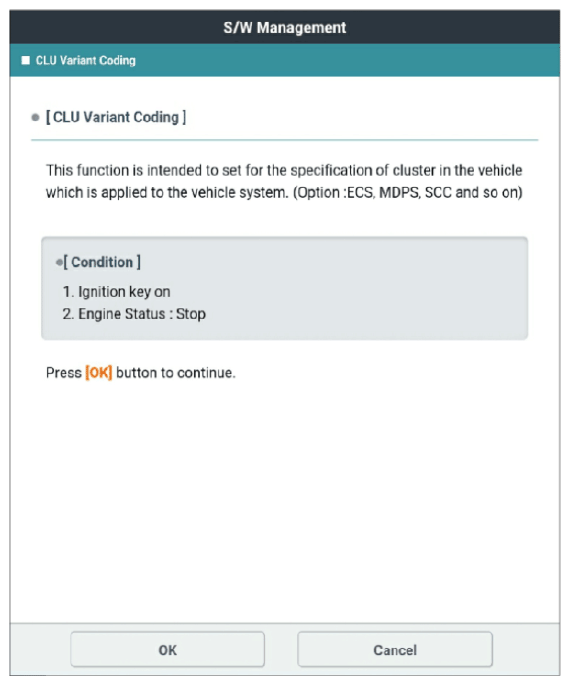

G14565401Courtesy of KIA MOTORS AMERICA, INC.

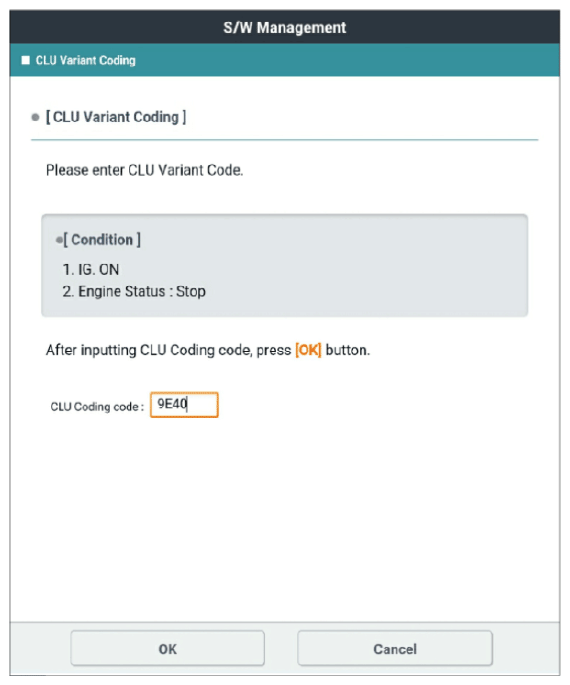

G14565402Courtesy of KIA MOTORS AMERICA, INC.

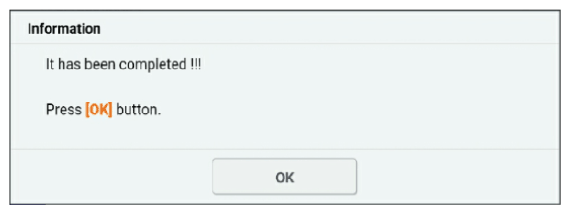

G14565403Courtesy of KIA MOTORS AMERICA, INC.

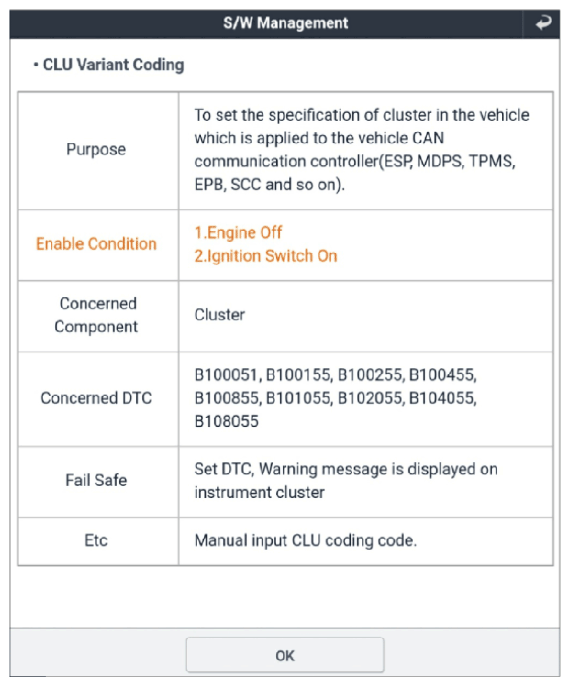

G14565404Courtesy of KIA MOTORS AMERICA, INC.

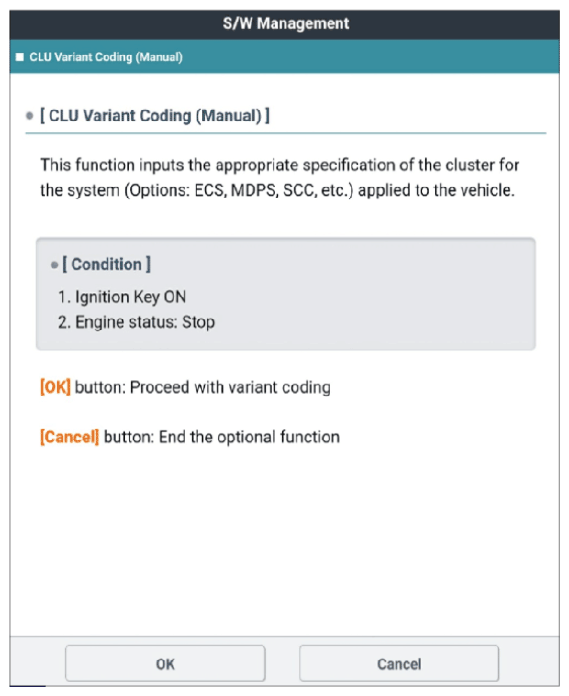

G14565405Courtesy of KIA MOTORS AMERICA, INC.

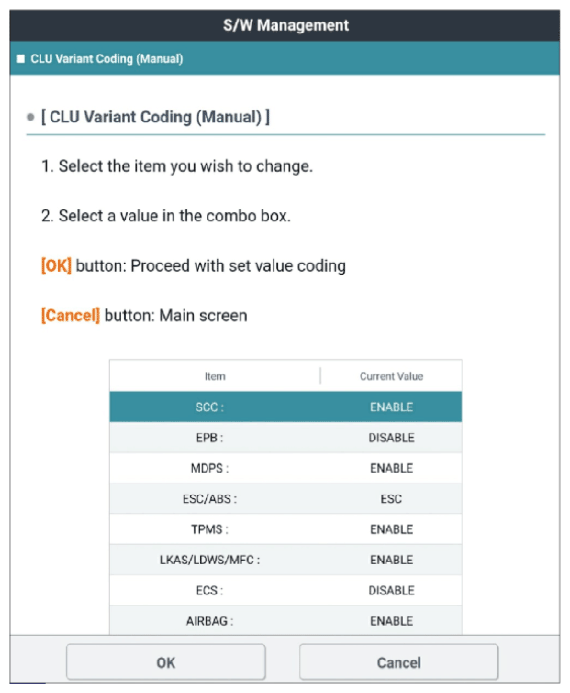

G14565406Courtesy of KIA MOTORS AMERICA, INC.

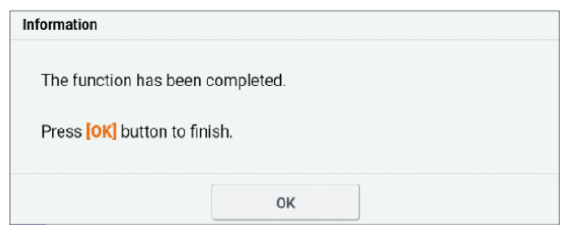

G14565407Courtesy of KIA MOTORS AMERICA, INC.
