Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

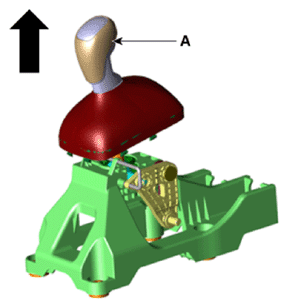

  1. Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.
    G14561059Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the select cable.

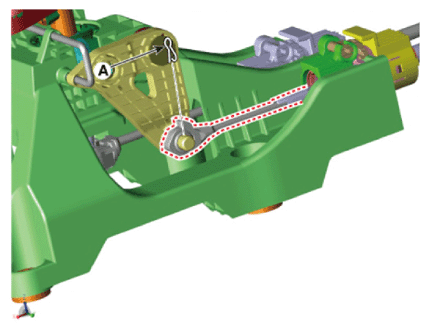

    1. Remove the snap pin (A).
      G14561060Courtesy of KIA MOTORS AMERICA, INC.

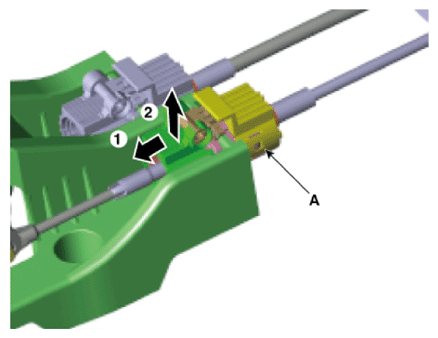

    2. Remove the select cable (A) from the shift lever.
    G14561061Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the shift cable.

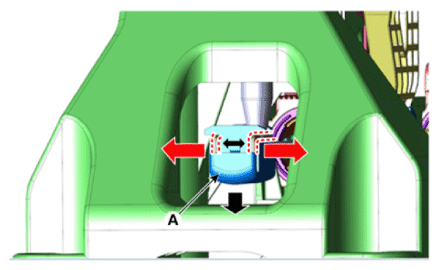

    1. Remove the snap pin (A) in the direction of the arrow.
      G14561062Courtesy of KIA MOTORS AMERICA, INC.

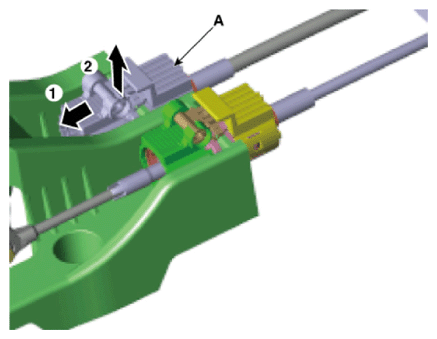

    2. Remove the shift cable (A) from the shift lever.
    G14561063Courtesy of KIA MOTORS AMERICA, INC.

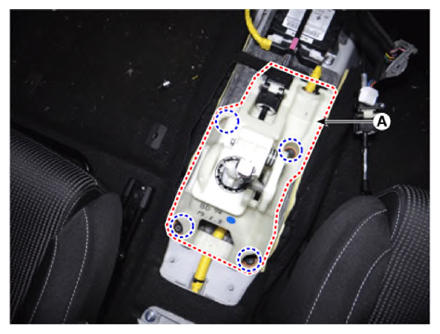

  5. Remove the shift lever assembly (A) after loosening the mounting bolts.

Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

G14561064Courtesy of KIA MOTORS AMERICA, INC.
