Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

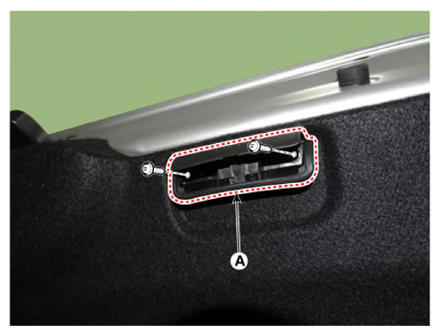

Loosen the mounting screw and remove the trunk handle (A).

Courtesy of KIA MOTORS AMERICA, INC.

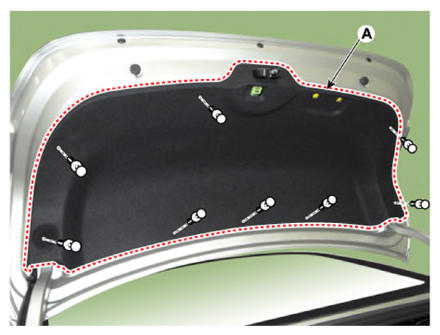

After loosening the mounting clips, then remove the trunk lid trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips.
