Repair Procedures: Adjustment

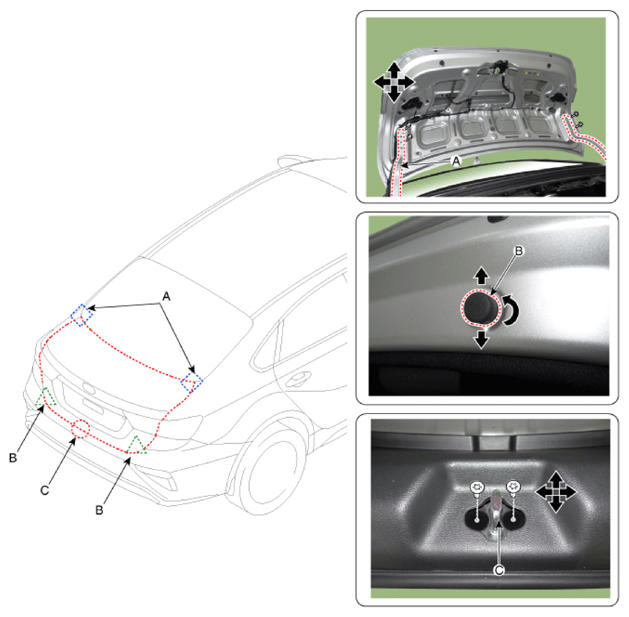

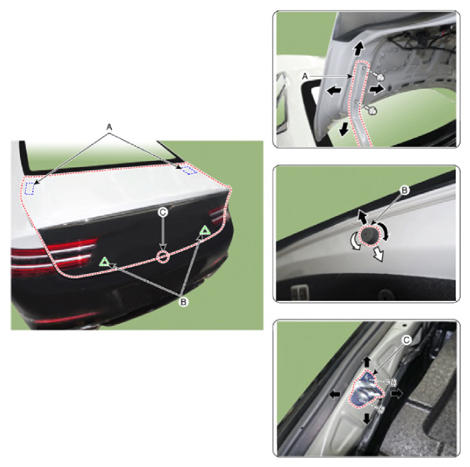

- Place the car on a flat surface and check whether the body and trunk lid are well - aligned.
- After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up and down or from side to side.
- Adjust the gap between the trunk lid and body by turning the trunk lid overslam bumpers (B).
- After loosening the trunk lid striker (C) mounting bolts, adjust the striker by moving it back and forth or from side to side and then tighten the mounting bolts.
- Make sure the trunk lid opens or closes properly.
