Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 9

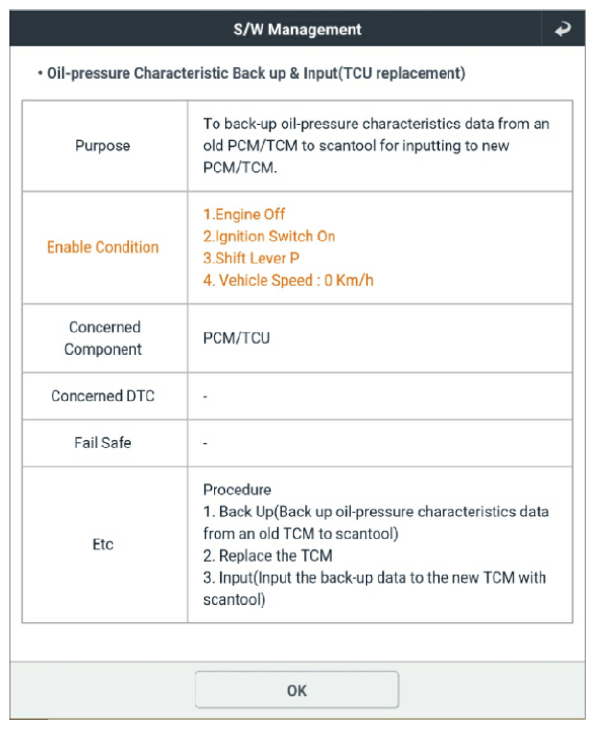

G13302731Courtesy of KIA MOTORS AMERICA, INC.

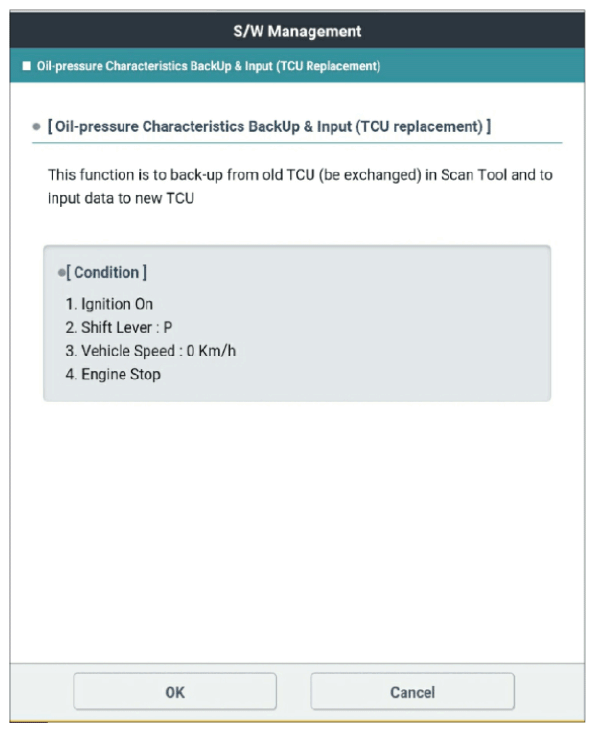

G13302732Courtesy of KIA MOTORS AMERICA, INC.

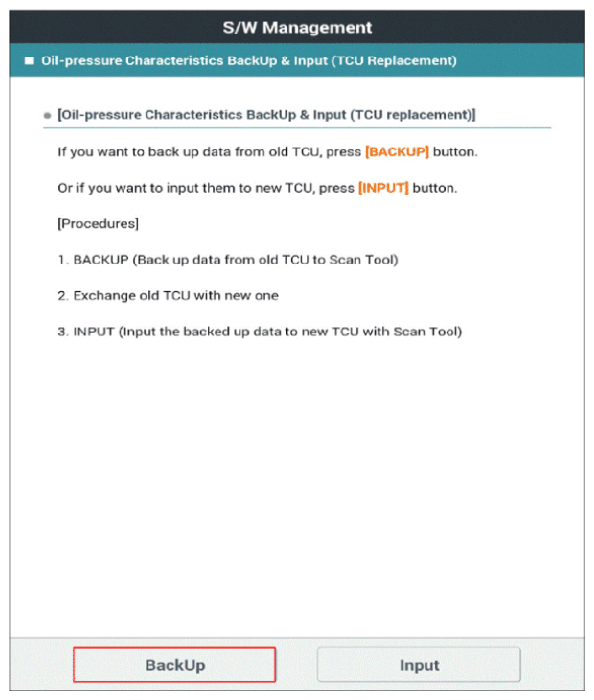

G13302733Courtesy of KIA MOTORS AMERICA, INC.

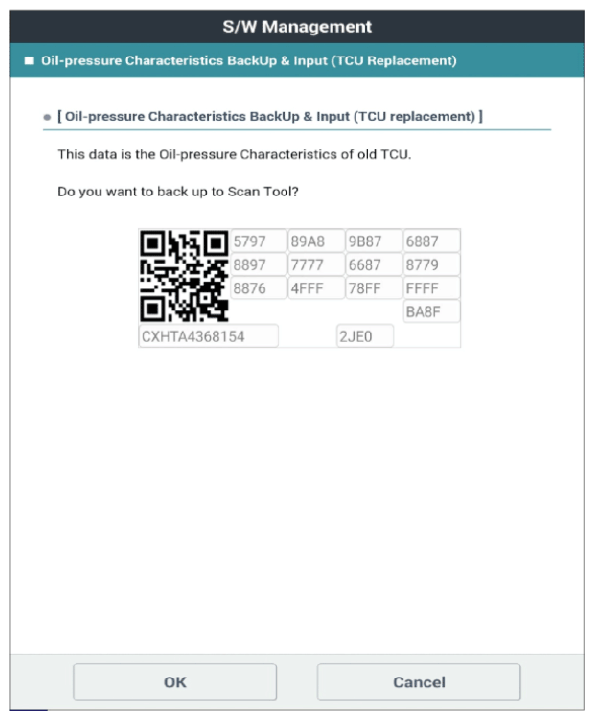

G13302734Courtesy of KIA MOTORS AMERICA, INC.

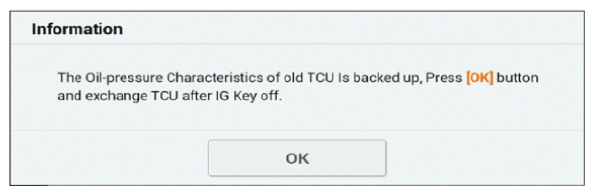

G13302735Courtesy of KIA MOTORS AMERICA, INC.

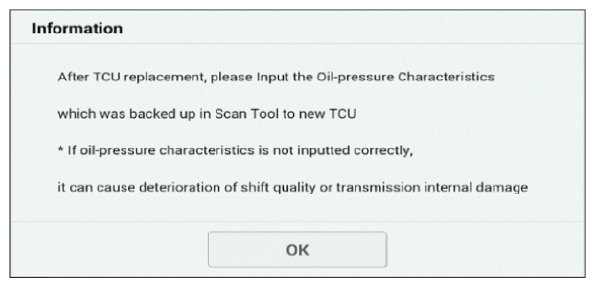

G13302736Courtesy of KIA MOTORS AMERICA, INC.

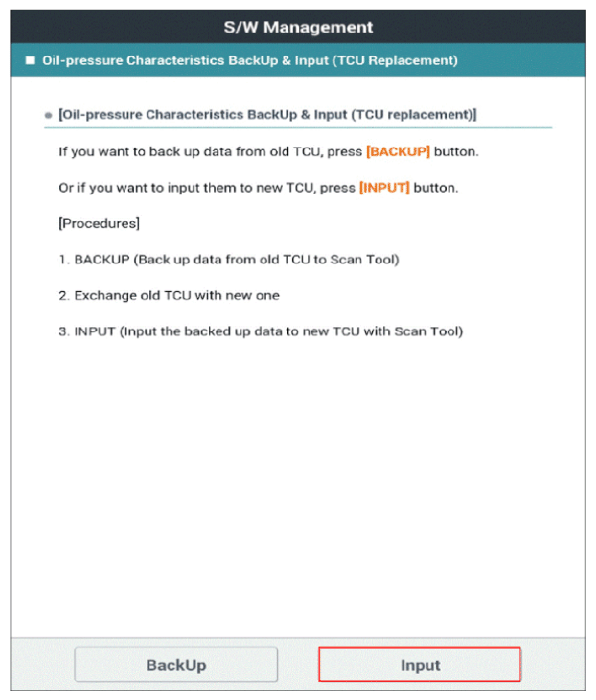

G13302737Courtesy of KIA MOTORS AMERICA, INC.

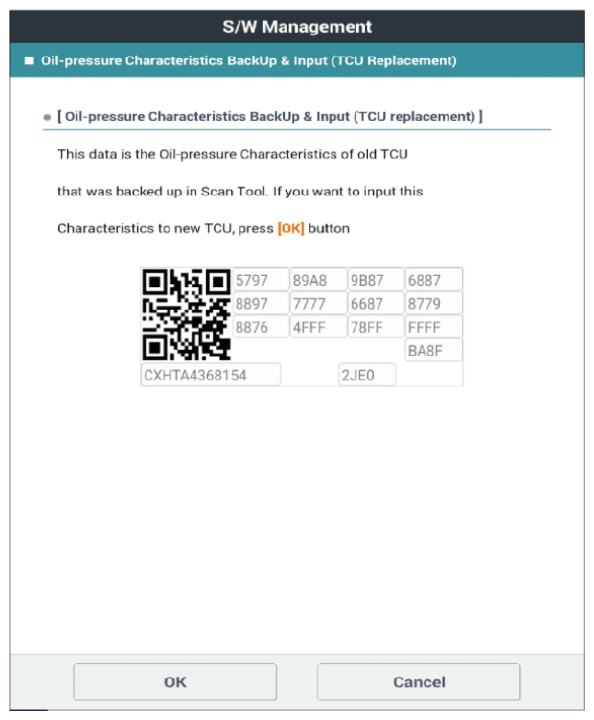

G13302738Courtesy of KIA MOTORS AMERICA, INC.

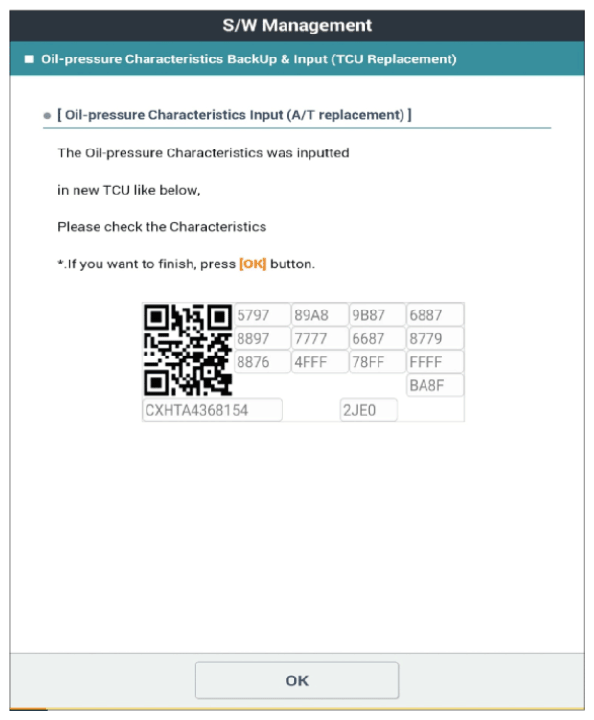

G13302739Courtesy of KIA MOTORS AMERICA, INC.
