Universal Joint Assembly

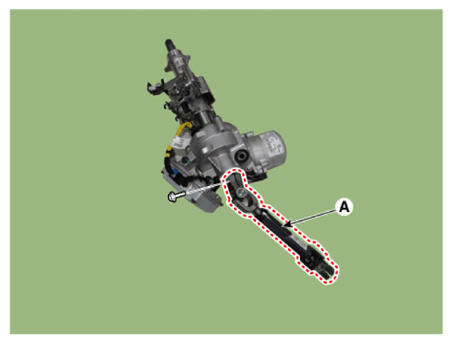

  1. Loosen the bolt and then remove the universal joint assembly (A).

    Tightening torque:

    49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb.ft)

    G13304726Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the bolt.
  2. Assemble in the reverse order of disassembly.
