Removal & Installation
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air duct.

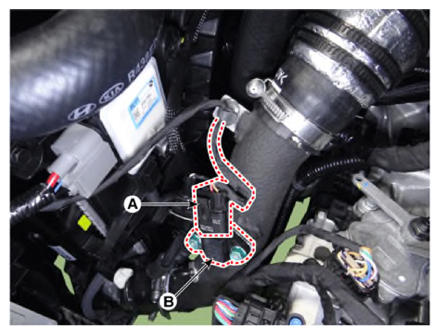

- Disconnect the boost pressure sensor connector (A).
- Remove the sensor (B) by loosening the mounting bolts.
Boost pressure sensor mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.NOTE:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
