Repair Procedures: Inspection
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

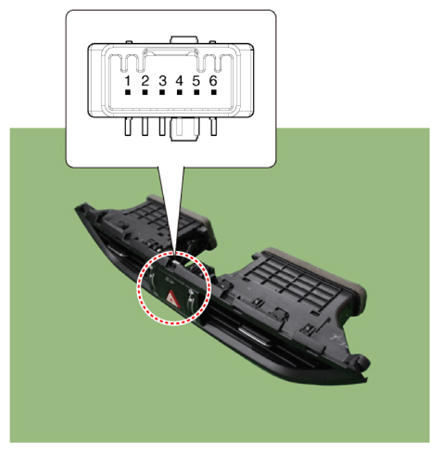

- Check for continuity between terminals.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Pin |
Function |
| 1 |
Ground |
| 2 |
Hazard lamp indicator |
| 3 |
Hazard lamp mode |
| 4 |
- |
| 5 |
Battery (+) |
| 6 |
- |
 Courtesy of KIA MOTORS AMERICA, INC.
|
