Run Out Inspection
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Jack up the vehicle.

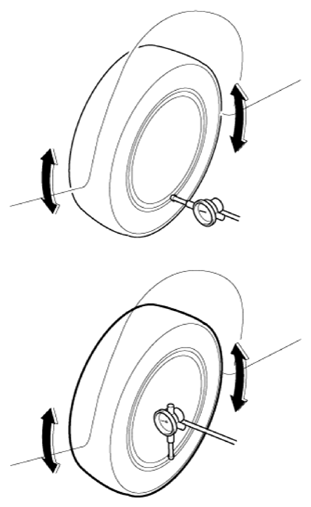

- Measure the wheel run-out by using a dial indicator as shown in the illustration below.
| Run-out |
Aluminum |
| Radial mm (in.) |
Below 0.3 (0.0118) |
| Lateral mm (in.) |
Below 0.3 (0.0118) |
- If measured value exceeds the standard value, replace the wheel.
