Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove valve core and deflate the tire.
  2. Remove the side of the tire bead area from the wheel using tire changing machine.

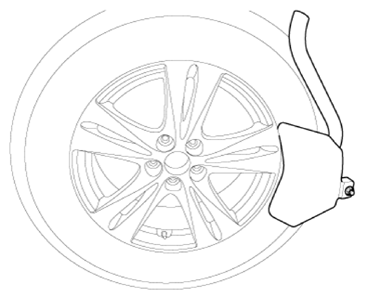

    G14561610Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
    • Avoid tire/tool contact with the valve on dismount.
    • Dismount should end near the valve.
  3. Rotate the wheel clockwise.

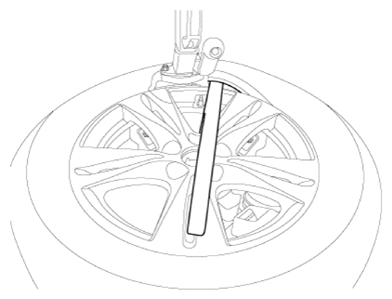

    G14561611Courtesy of KIA MOTORS AMERICA, INC.

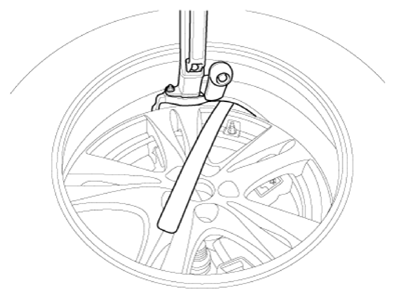

    G14561612Courtesy of KIA MOTORS AMERICA, INC.
