Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

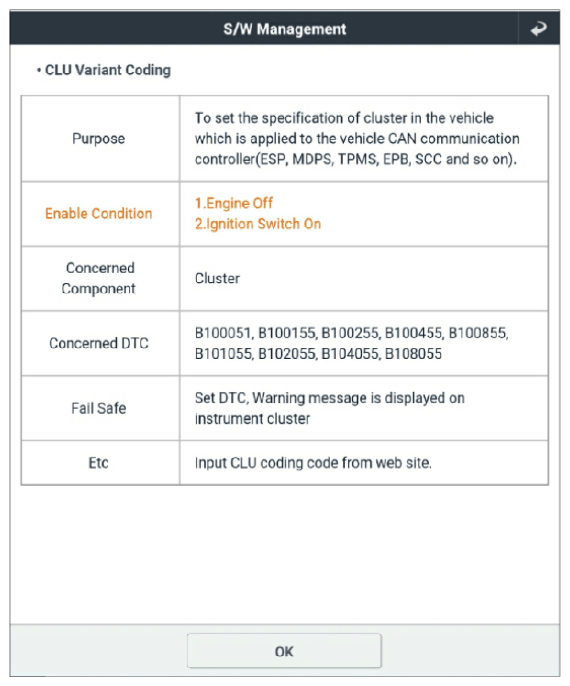

G14565500Courtesy of KIA MOTORS AMERICA, INC.

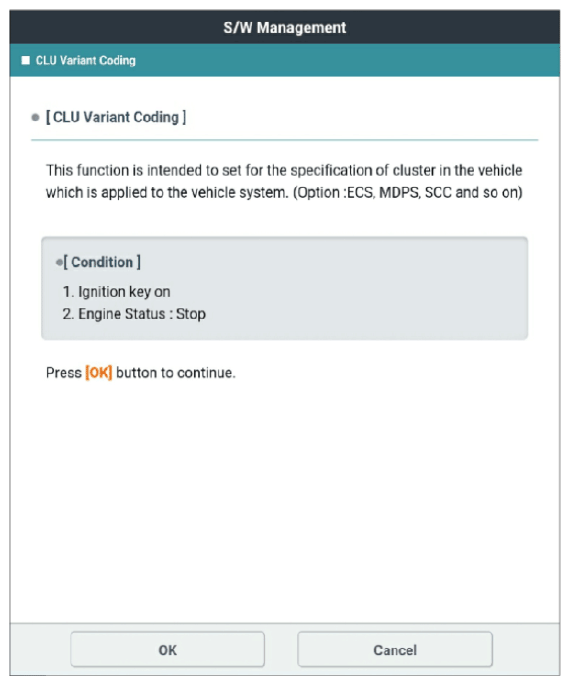

G14565501Courtesy of KIA MOTORS AMERICA, INC.

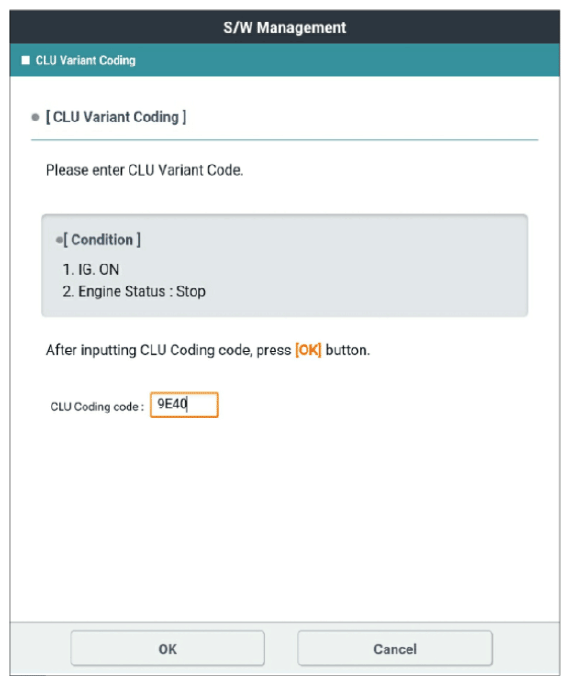

G14565502Courtesy of KIA MOTORS AMERICA, INC.

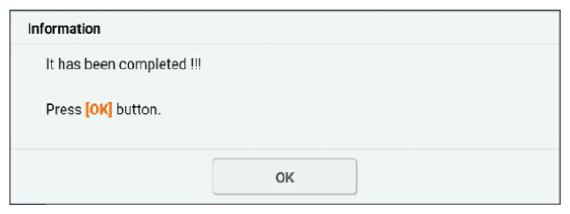

G14565503Courtesy of KIA MOTORS AMERICA, INC.

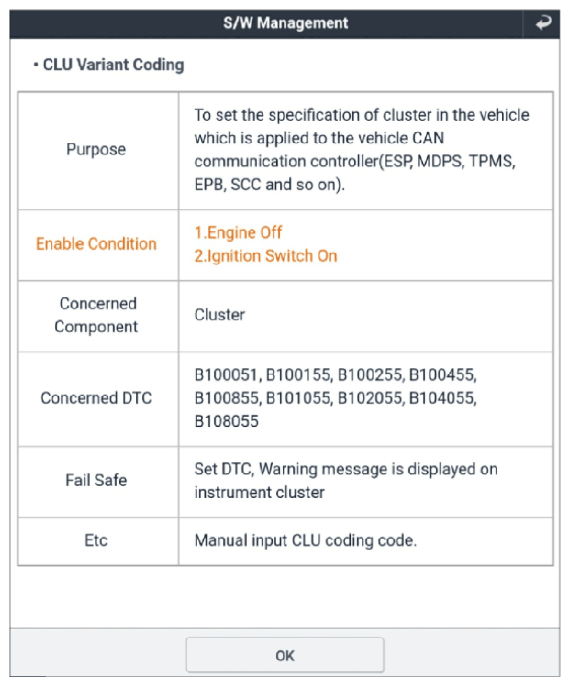

G14565504Courtesy of KIA MOTORS AMERICA, INC.

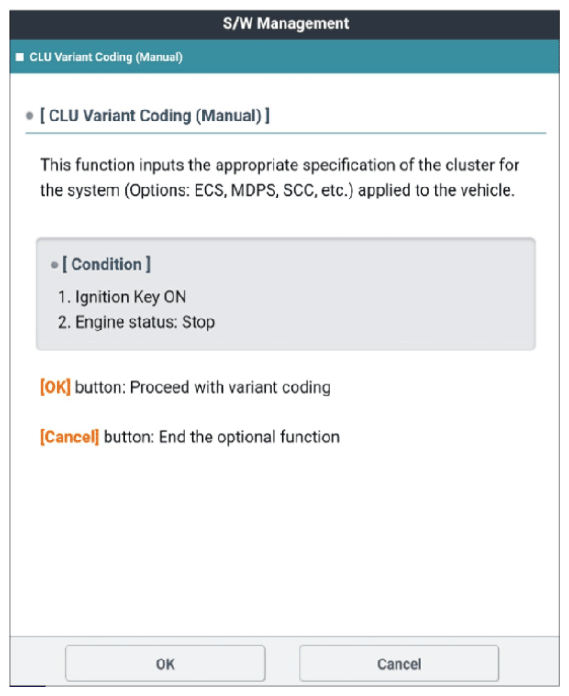

G14565505Courtesy of KIA MOTORS AMERICA, INC.

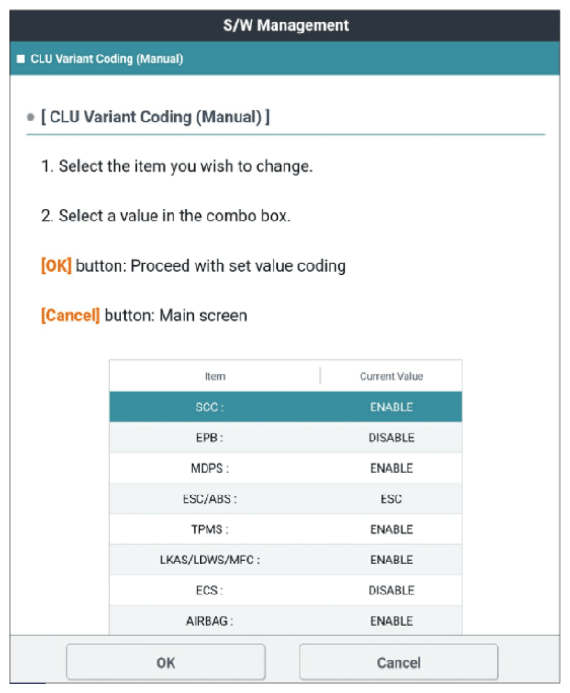

G14565506Courtesy of KIA MOTORS AMERICA, INC.

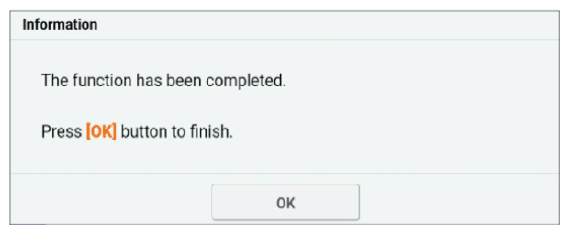

G14565507Courtesy of KIA MOTORS AMERICA, INC.
