Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 8

Vehicle S/W Management

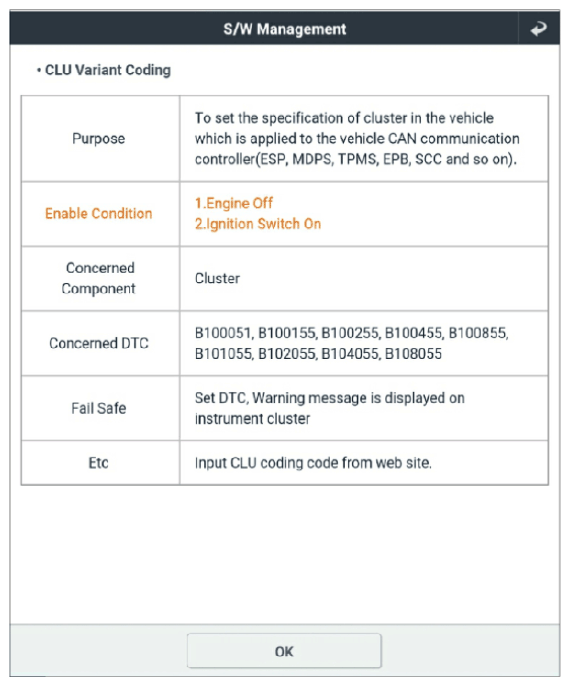

G14565430Courtesy of KIA MOTORS AMERICA, INC.

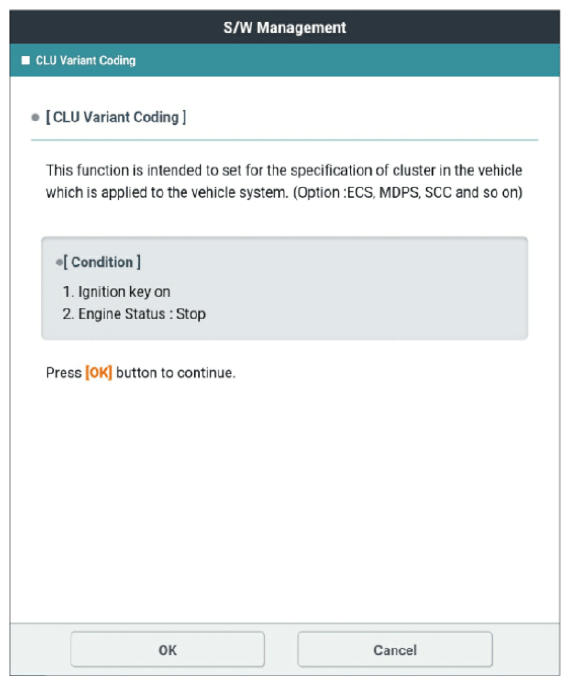

G14565431Courtesy of KIA MOTORS AMERICA, INC.

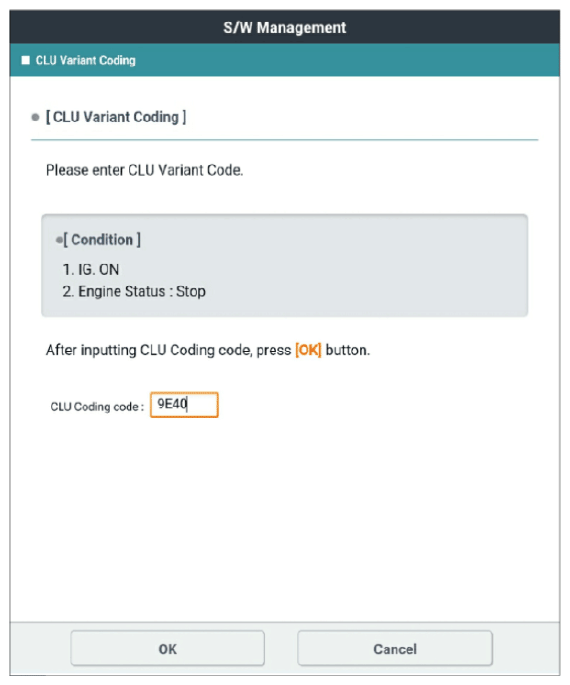

G14565432Courtesy of KIA MOTORS AMERICA, INC.

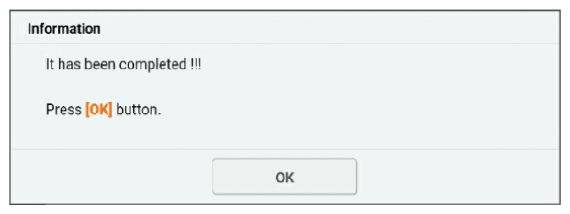

G14565433Courtesy of KIA MOTORS AMERICA, INC.

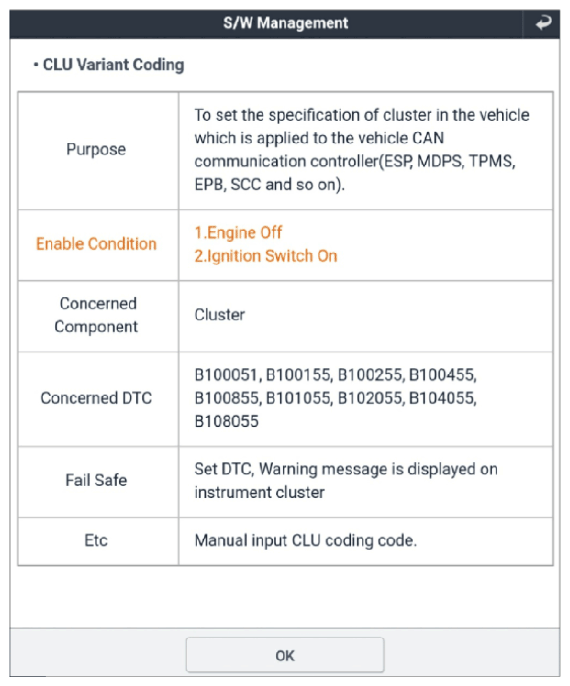

G14565434Courtesy of KIA MOTORS AMERICA, INC.

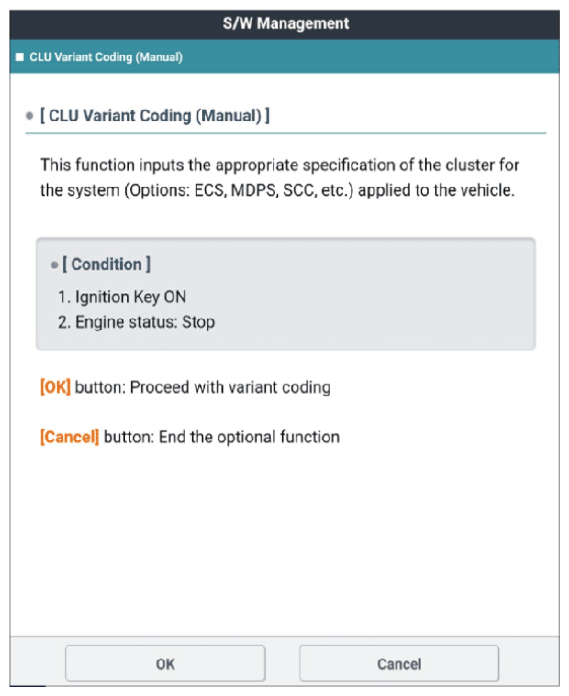

G14565435Courtesy of KIA MOTORS AMERICA, INC.

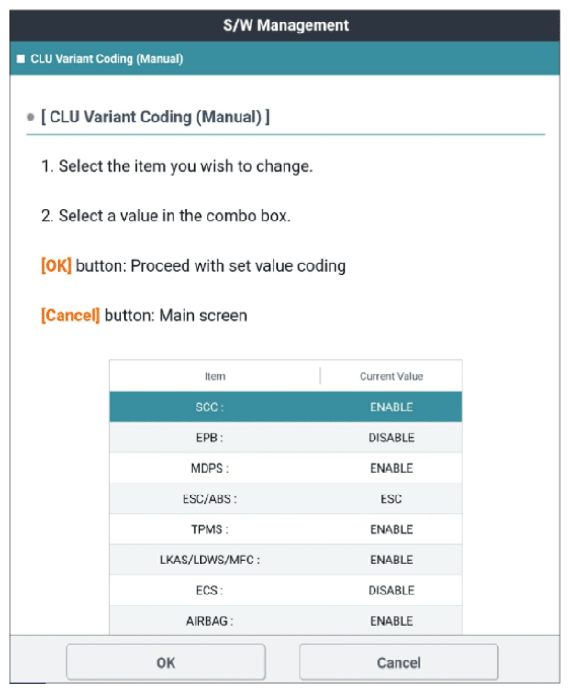

G14565436Courtesy of KIA MOTORS AMERICA, INC.

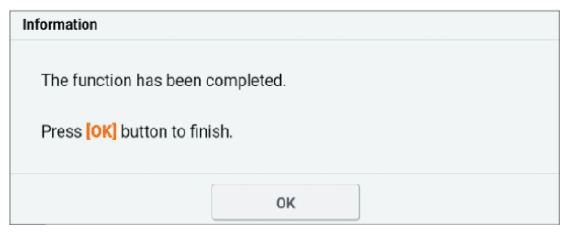

G14565437Courtesy of KIA MOTORS AMERICA, INC.
