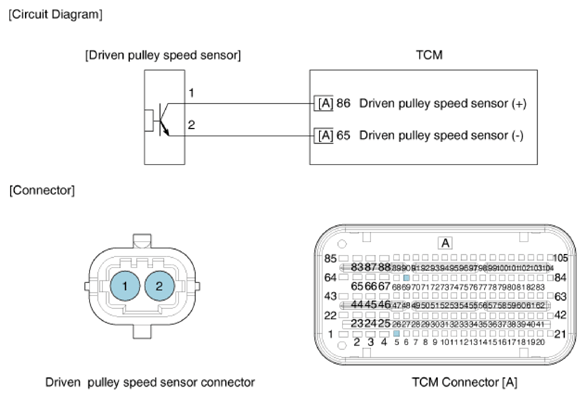

Home >> Kia >> 2021 >> Forte FE, Automatic CVT Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> IVT Control System >> Driven Pulley Speed Sensor >> Schematic Diagrams >> Circuit Diagram
