Repair Procedures: Replacement: Bulb

  1. Remove the room lamp lens (A) by using a screwdriver or remover.

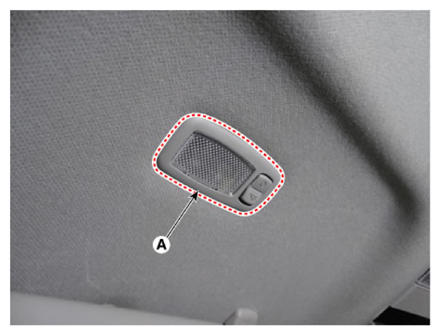

    G13306076Courtesy of KIA MOTORS AMERICA, INC.

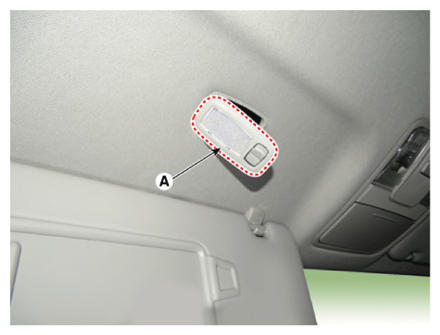

    G13306077Courtesy of KIA MOTORS AMERICA, INC.
  2. Replace the bulb (A) by pressing the fixing clip.

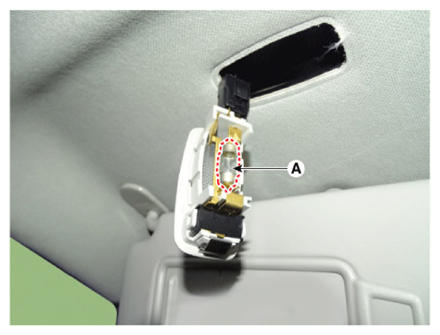

    G13306078Courtesy of KIA MOTORS AMERICA, INC.
