Repair Procedures: Replacement

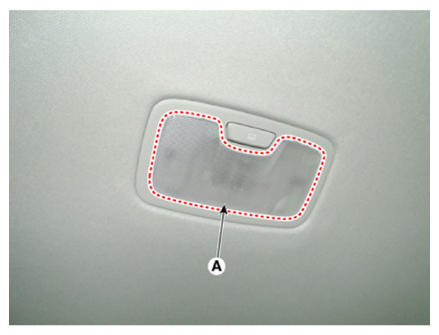

  1. Remove the room lamp lens (A) by using a screwdriver or remover.
    G13306071Courtesy of KIA MOTORS AMERICA, INC.

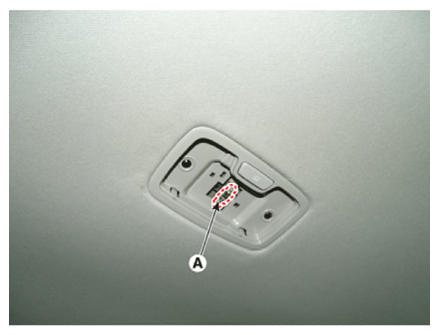

  2. Replace the bulb (A).
    G13306072Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse of the removal.
