Home >> Kia >> 2021 >> Forte FE, Automatic CVT Trans >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System >> Rheostat >> Repair Procedures >> Inspection

Repair Procedures: Inspection

  1. Check for continuity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.

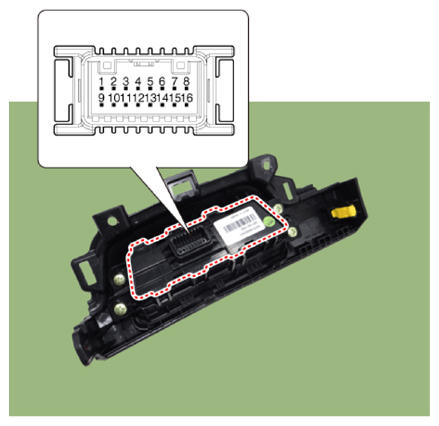

G13306109Courtesy of KIA MOTORS AMERICA, INC.

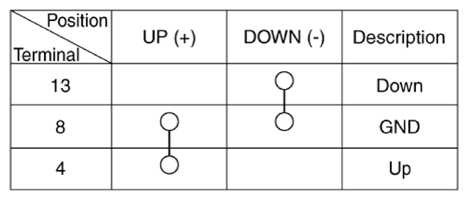

G13306110Courtesy of KIA MOTORS AMERICA, INC.
