Fog lamp

Vehicle condition H3 W3
Without driver 329.5 mm (12.97 in.) 981.8 mm (38.65 in.)
With driver 324.5 mm (12.78 in.)
  1. Turn the front fog lamp on without the driver aboard.

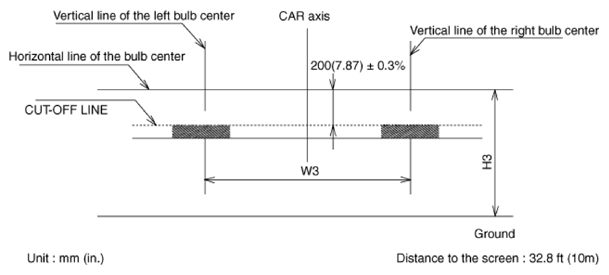

  2. The cut-off line should be projected in the allowable range (shaded region).
G13306030Courtesy of KIA MOTORS AMERICA, INC.
