Home >> Kia >> 2021 >> Forte FE, Automatic CVT Trans >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System >> Overhead Console Lamp >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

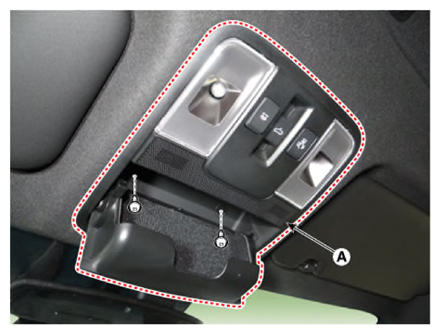

  2. Remove the overhead console lamp (A) after loosening the screws.
    G13306081Courtesy of KIA MOTORS AMERICA, INC.

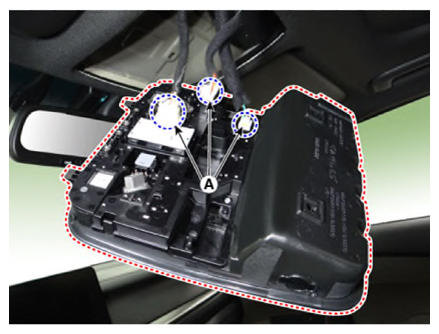

  3. Disconnect the connectors (A).
    G13306082Courtesy of KIA MOTORS AMERICA, INC.
