Repair Procedures: Removal

NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center garnish assembly.

    (Refer to Body - "CRASH PAD CENTER GARNISH ASSEMBLY ")

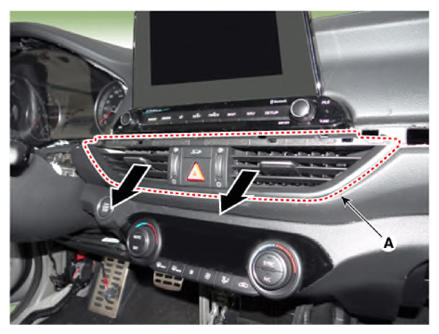

  3. Remove the center fascia vent (A).
    G13306085Courtesy of KIA MOTORS AMERICA, INC.

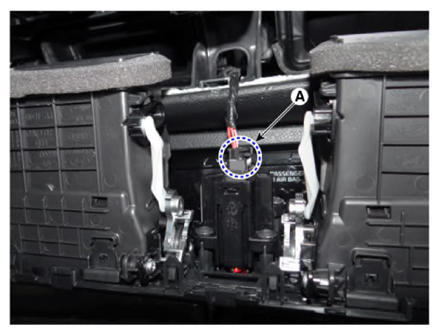

  4. Disconnect the connector (A).
    G13306086Courtesy of KIA MOTORS AMERICA, INC.

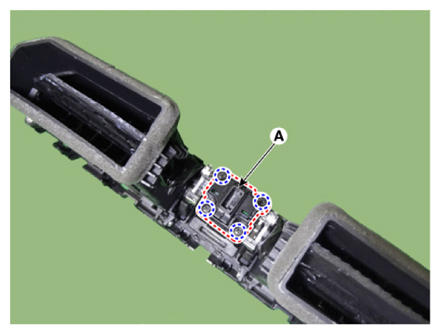

  5. Remove the hazard lamp switch (A) after loosening the screws.
    G13306087Courtesy of KIA MOTORS AMERICA, INC.
