Repair Procedures: Inspection

  1. Check for continuity between terminals.

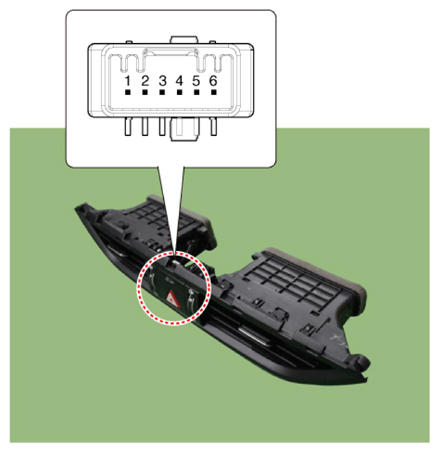

G13306083Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Ground
2 Hazard lamp indicator
3 Hazard lamp mode
4 -
5 Battery (+)
6 -

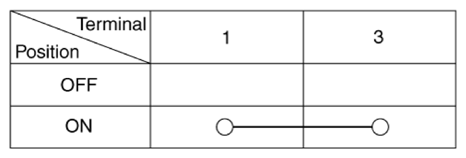

G13306084Courtesy of KIA MOTORS AMERICA, INC.
