Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the under cover.

    Nu 2.0 MPI (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER  ")

    Gamma 1.6 MPI (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER  ")

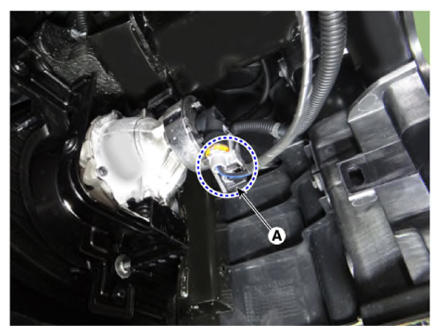

  3. Disconnect the fog lamp connector (A).
    G13306089Courtesy of KIA MOTORS AMERICA, INC.

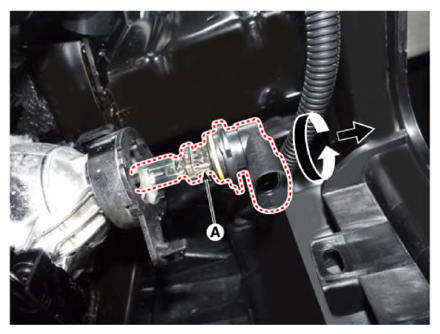

  4. Replace the bulb after removing the fog lamp socket (A) by rotating it in the counterclockwise.
    G13306090Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse of the removal.
