Repair Procedures: Replacement

NOTE:

Remove the package tray trim.
(Refer to Interior Trim - "REAR PACKAGE TRAY TRIM ")

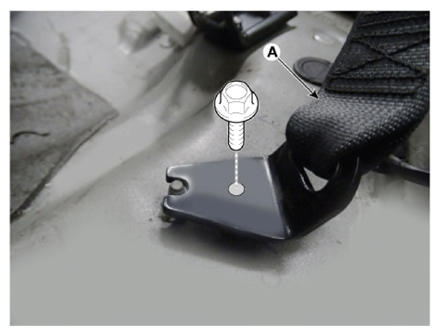

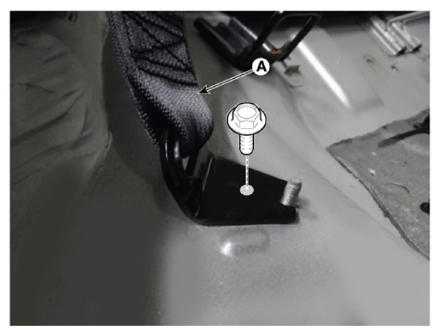

After loosening the mounting bolt, remove the rear seat belt lower anchor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.8 - 39.8 lb.ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

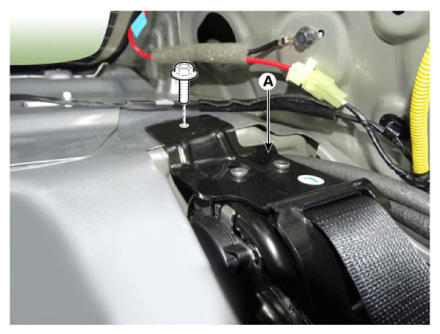

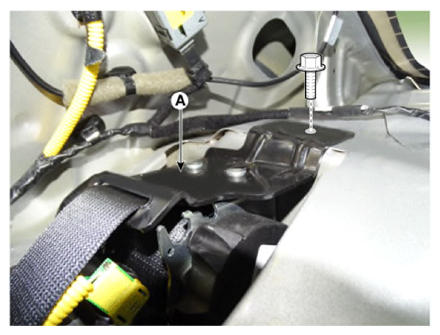

Loosen the retractor mounting bolt, remove the rear seat belt (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.8 - 39.8 lb.ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips (or pin - type retainers).
