Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the intake actuator.

    (Refer to Blower - "INTAKE ACTUATOR ")

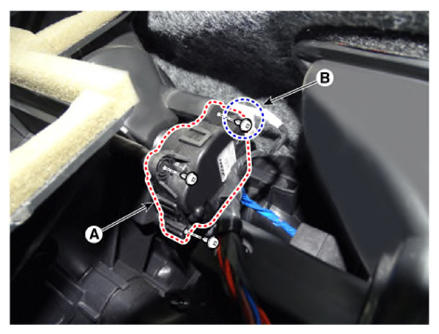

  3. Disconnect the connector (B) and then remove the auto defogging actuator (A) after loosening the mounting screws.
    G13306475Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
