[Gasoline 1.6 T-GDI]

WARNING: This page is about a different variant/trim than selected.

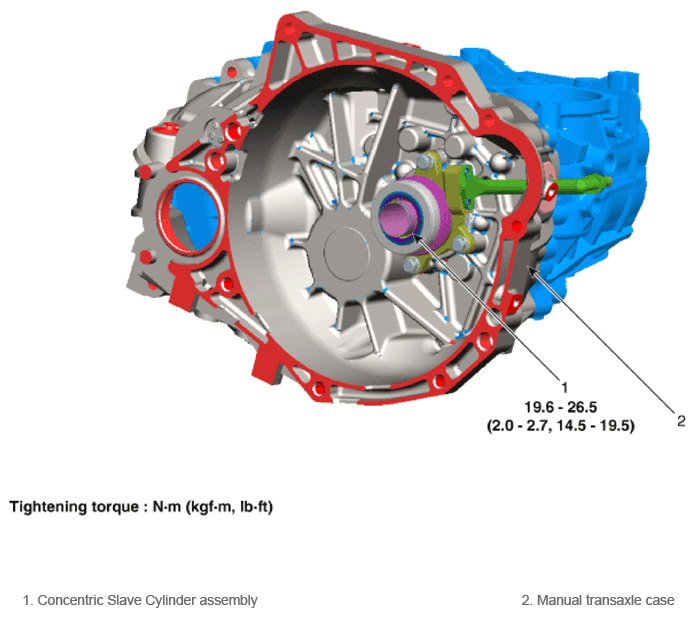

Fig 1: Concentric Slave Cylinder Assembly Components With Torque Specification (Gasoline 1.6 T-GDI)
G13304015Courtesy of KIA MOTORS AMERICA, INC.
