Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

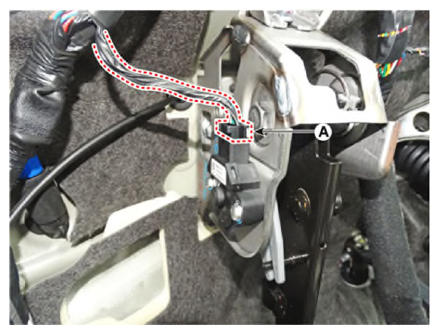

  3. Disconnect the ignition lock & clutch switch connector (A).
    G13303981Courtesy of KIA MOTORS AMERICA, INC.

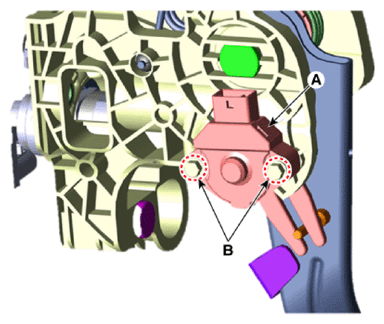

  4. Remove the ignition lock & clutch switch (A) after removing the bolts (B).
    G13303982Courtesy of KIA MOTORS AMERICA, INC.
    G13303983Courtesy of KIA MOTORS AMERICA, INC.
