Repair Procedures: Removal

1. Remove the air cleaner assembly and air duct.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

2. Remove the battery and battery tray.

   (Refer to Engine Electrical System - "BATTERY ")

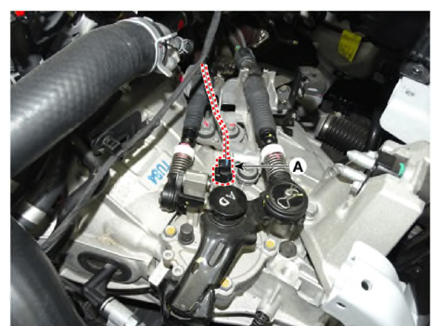

3. Disconnect the back up lamp switch connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the control cable.

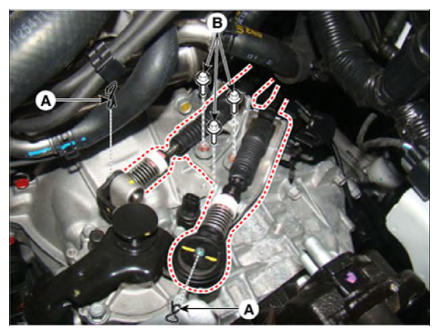

   1. Remove the control cable from the control shaft after removing the pins (A).
   2. Loosen the control cable bracket bolts (B).

      Tightening torque:

      14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

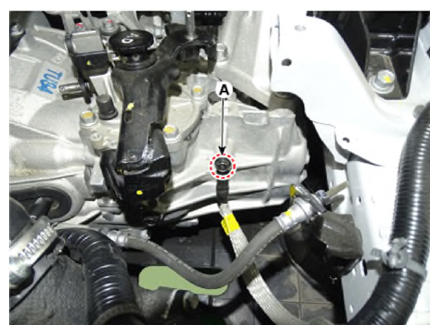

5. Remove the ground bolt (A).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

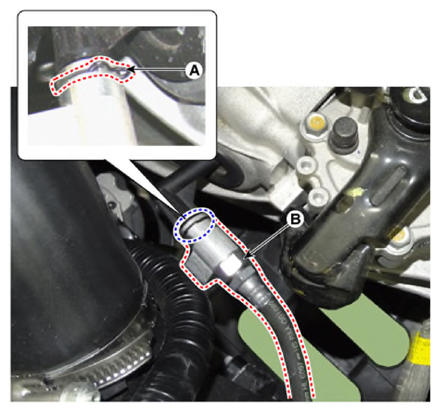

6. Disconnect the clutch tube (B) after removing the clip (A).

   Courtesy of KIA MOTORS AMERICA, INC.

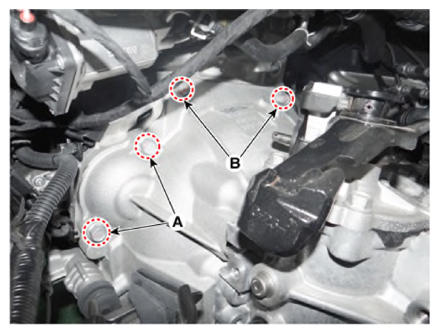

7. Remove the starter mounting bolt (A) and then transaxle upper mounting bolt (B).

   Tightening torque:

   1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
   2. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

8. Remove the cowl top cover.

   (Refer to Body - "COWL TOP COVER ")

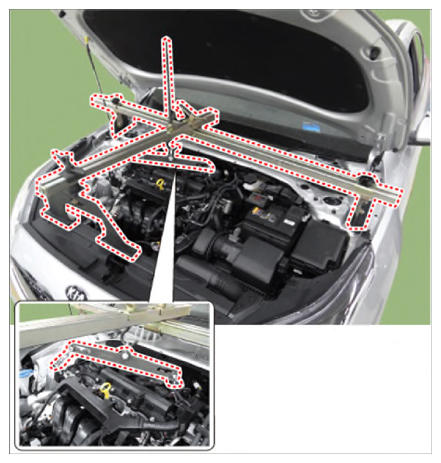

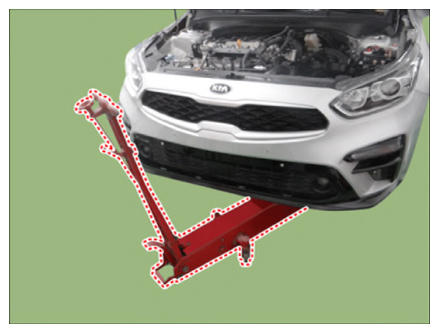

9. Assemble the engine support fixture on the engine room.

   (Refer to Special Service Tools - "ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")

10. Using the engine support fixture, hold the engine and transaxle assembly safely.

    Courtesy of KIA MOTORS AMERICA, INC.

11. Support the transaxle safely on a jack.

    Courtesy of KIA MOTORS AMERICA, INC.

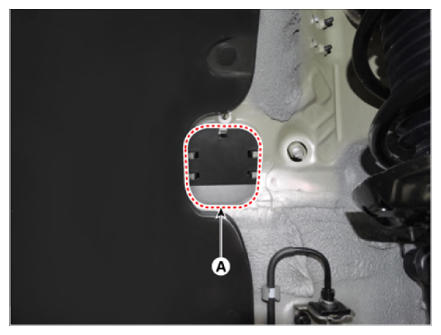

12. Remove the dust cover (A).

    Courtesy of KIA MOTORS AMERICA, INC.

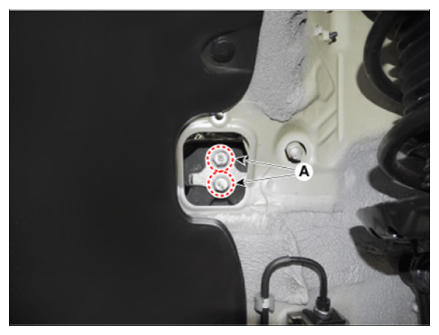

13. Remove the mounting bolts (A) from the transaxle support bracket.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

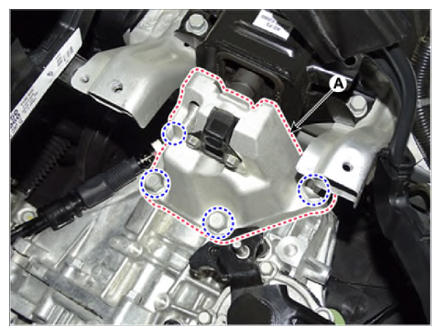

14. Remove the transaxle support bracket (A).

    Tightening torque:

    58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

15. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

16. Remove the vacuum pump.

    (Refer to Brake System - "VACUUM PUMP ")

17. Remove the driveshaft assembly.

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")

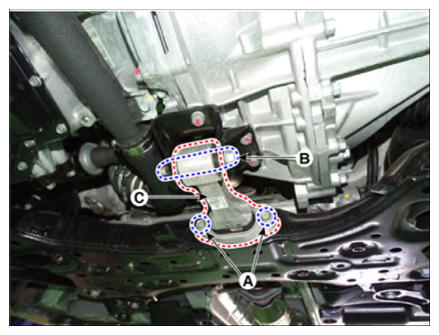

18. Remove the roll rod bracket (C) after loosening the bolt (A), (B).

    Tightening torque:

    1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
    2. 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.1 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

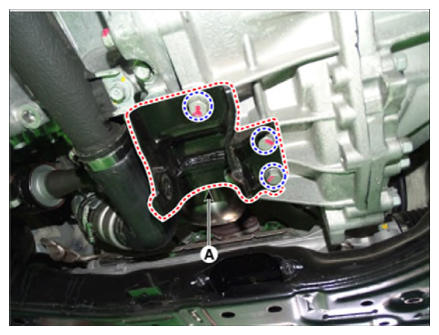

19. Remove the roll rod support bracket (A).

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

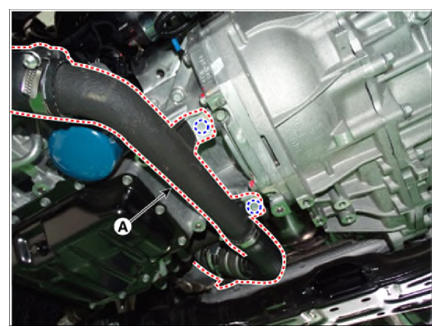

20. Remove the intercooler inlet hose & pipe (A).

    Tightening torque:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

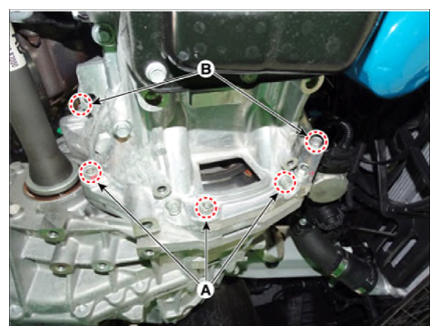

21. Loosen the lower mounting bolts (A, B) of lower part of the transaxle and then removing the transaxle assembly by supporting it with a jack.

    Tightening torque:

    1. 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb.ft)
    2. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
    NOTE: Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.

Courtesy of KIA MOTORS AMERICA, INC.

Installation

1. Install in the reverse order of removal.
2. Perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid.

   (Refer to Clutch System - "CONCENTRIC SLAVE CYLINDER ASSEMBLY ")
