Description And Operation: Description: Bi-Function

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Definition

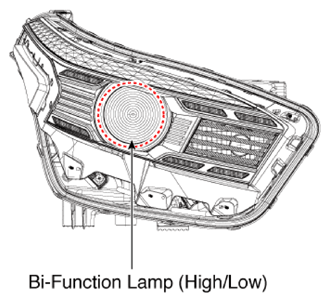

- A headlamp with integrated functions of high and low beam

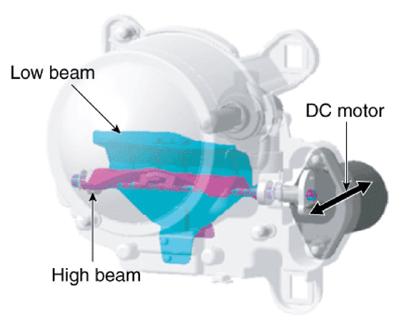

- The light is controlled by rotating the shield inserted to the lens. (A solenoid is adopted.)
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Structure and mechanism

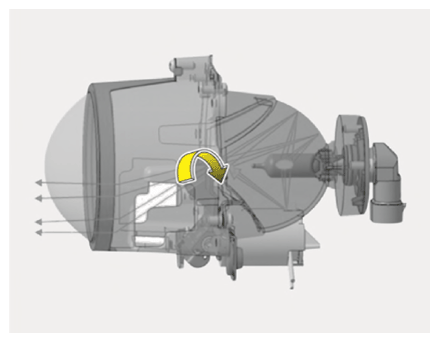

When working as a low beam

: The light illuminates to the restricted area of low beam by blocking the light with the stopped shield.

Courtesy of KIA MOTORS AMERICA, INC.

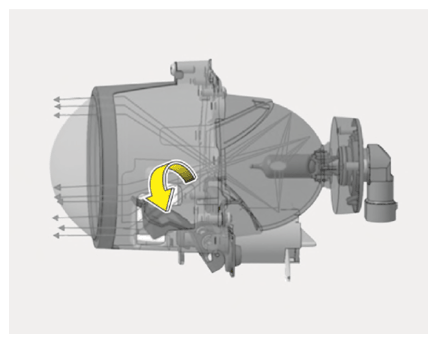

When working as a high beam

: The light is not blocked by the open shield and the light illuminates to the area of high beam.

Courtesy of KIA MOTORS AMERICA, INC.
