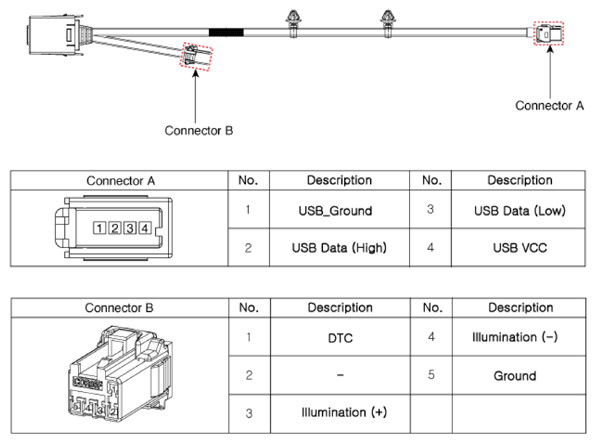

Display Audio

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
G14563733Courtesy of KIA MOTORS AMERICA, INC.
