Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing it with a remover, wrap a protective tape around it to prevent damage to the parts.
  • Be careful not to damage trim and panel.
  • Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

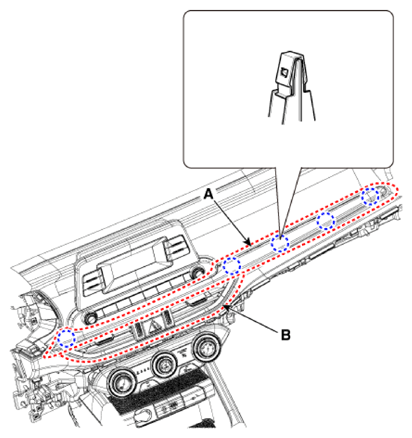

  3. Remove the center air vent duct assembly (B) after removing the crash pad center garnish (A).
    G14563664Courtesy of KIA MOTORS AMERICA, INC.

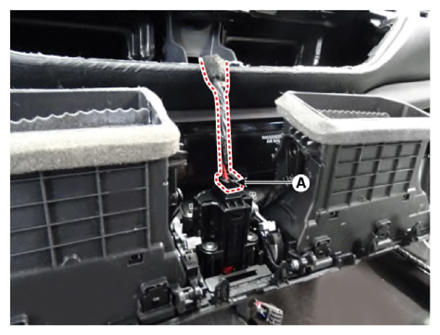

  4. Disconnect the connector (A) from the center air vent duct assembly.
    G14563665Courtesy of KIA MOTORS AMERICA, INC.

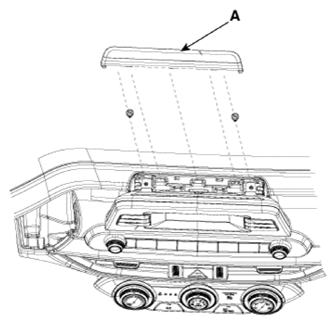

  5. Loosen the screws after removing the audio upper panel (A).
    G14563666Courtesy of KIA MOTORS AMERICA, INC.

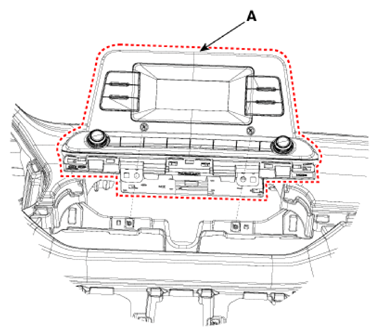

  6. Remove the audio head unit (A) after loosening the screws.
    G14563667Courtesy of KIA MOTORS AMERICA, INC.

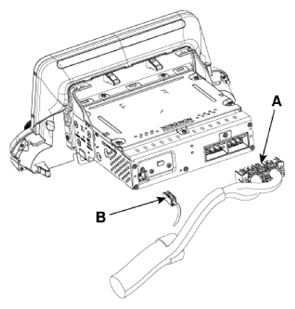

  7. Disconnect the audio head unit connector (A) and Radio cable (B).
    G14563668Courtesy of KIA MOTORS AMERICA, INC.
