Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing it with a remover, wrap a protective tape around it to prevent damage to the parts.
Be careful not to damage trim and panel.
Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.

Disconnect the negative (-) battery terminal.
Remove the cluster fascia panel.
(Refer to Body - "CLUSTER FASCIA PANEL ")

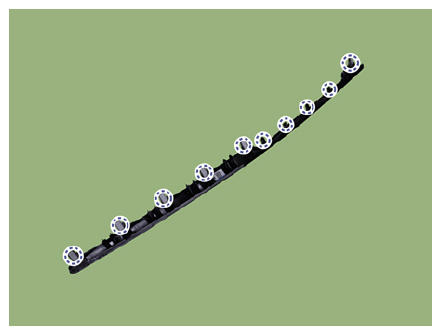

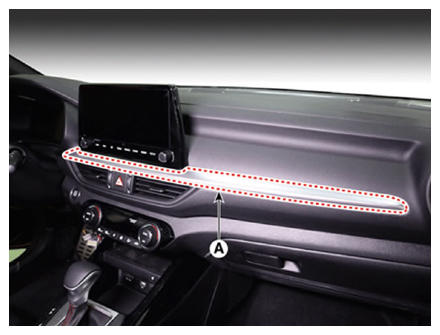

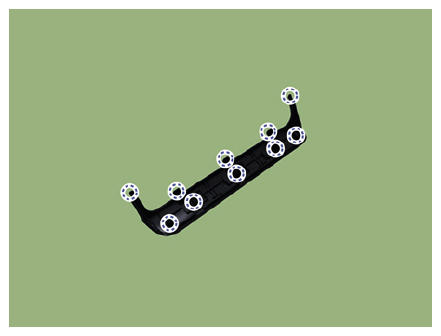

Remove the crash pad center garnish (A) by using the remover.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

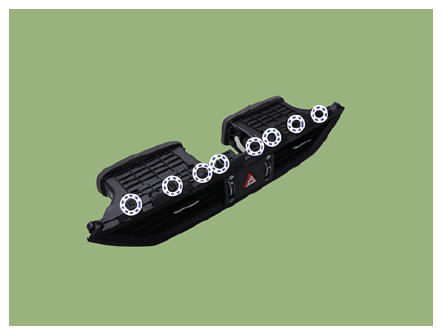

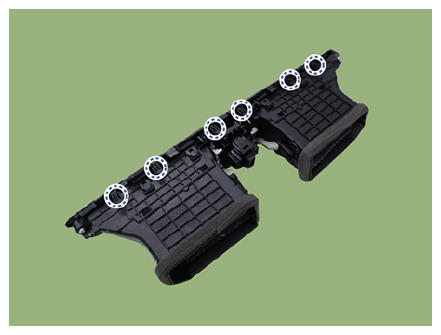

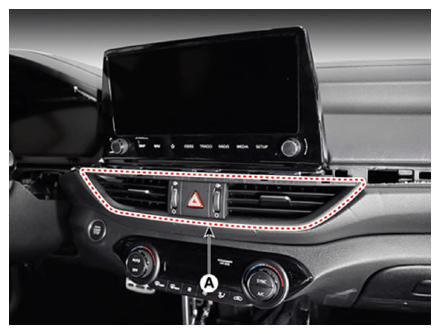

Remove the center air vent duct assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

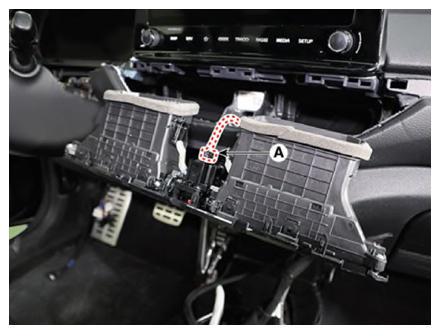

Disconnect the center air vent duct assembly connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

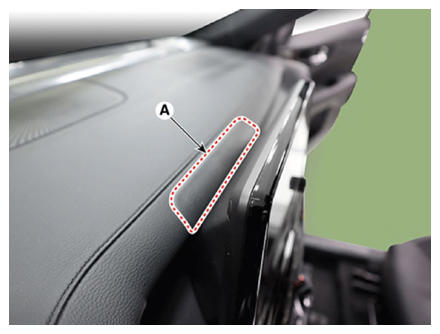

Remove the AVN upper panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

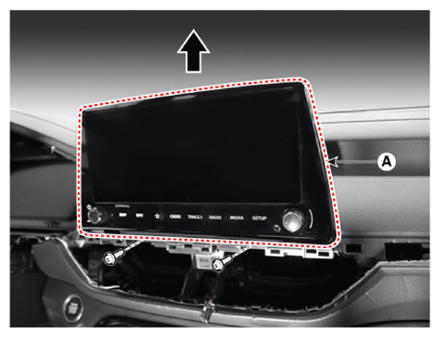

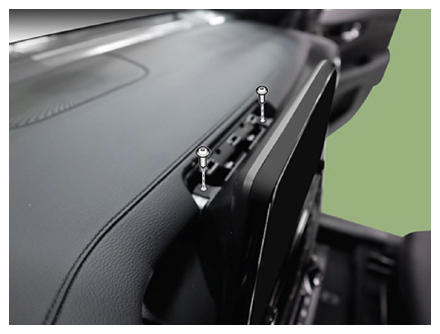

Remove the AVN head unit (A) after removing the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

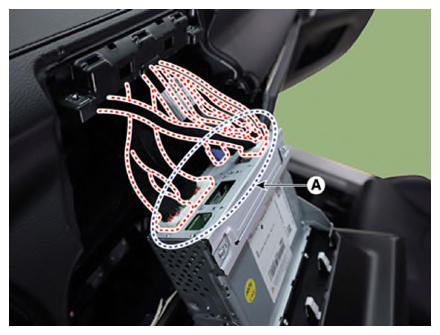

Disconnect the AVN head unit connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
