Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center garnish.

    (Refer to Body - "CRASH PAD CENTER GARNISH ASSEMBLY ")

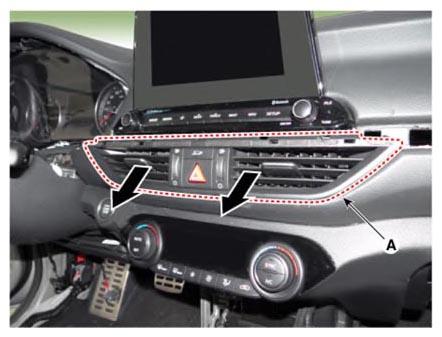

  3. Remove the center fascia vent (A).
    G14557684Courtesy of KIA MOTORS AMERICA, INC.

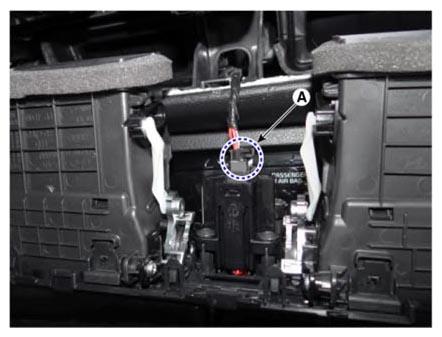

  4. Disconnect the center fascia vent connector (A).
    G14557685Courtesy of KIA MOTORS AMERICA, INC.

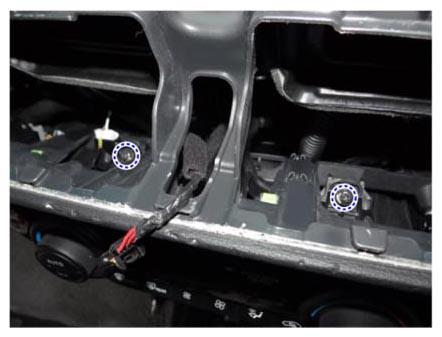

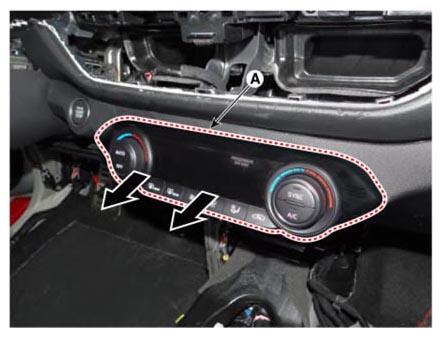

  5. After loosening the mounting screws, remove the A/C & heater controller unit (A).
    G14557686Courtesy of KIA MOTORS AMERICA, INC.
    G14557687Courtesy of KIA MOTORS AMERICA, INC.

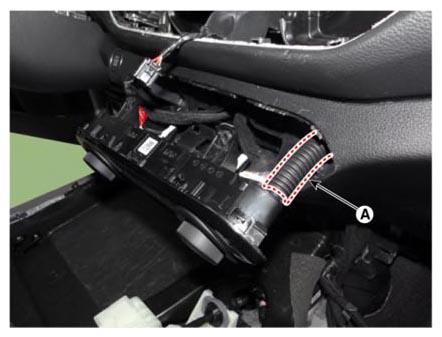

  6. Disconnect the heater controller assembly hose (A).
    G14557688Courtesy of KIA MOTORS AMERICA, INC.

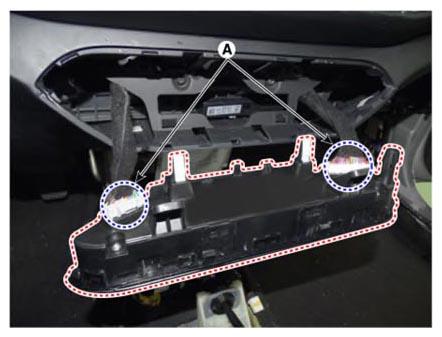

  7. Disconnect the A/C & heater controller connectors (A).
    G14557689Courtesy of KIA MOTORS AMERICA, INC.
  8. To install, reverse the removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
