Section 73 (Brake System)
>>
Vacuum Pump
>>
Schematic Diagrams
>>

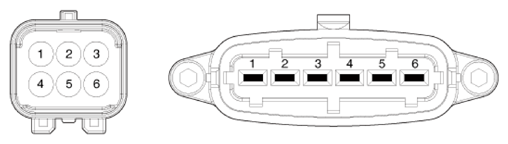

Terminal Function
Terminal Function
WARNING:
This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of KIA MOTORS AMERICA, INC.
PIN No
Function
Wire color
1
Ground
BLACK
2
CAN High
WHITE
3
CAN Low
YELLOW
4
Vacuum sensor
PINK
5
IGN 1
BLUE
6
Battery (+)
BLUE
