Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.
Avoid breathing dust particles.
Never use an air hose or brush to clean brake assemblies.

Release the parking brake.

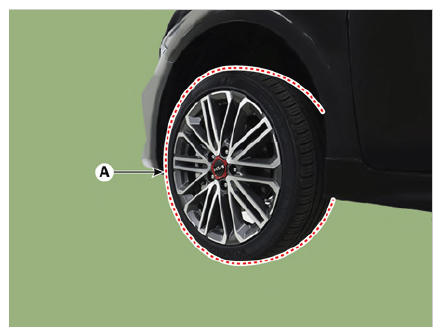

Remove the rear wheel and tire (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage to the hub bolts when removing the rear wheel and tire.

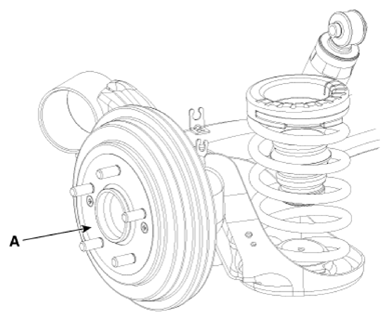

Remove the rear brake drum (A).

Courtesy of KIA MOTORS AMERICA, INC.

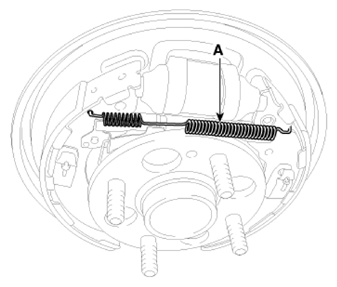

Remove the upper return spring (A).

Courtesy of KIA MOTORS AMERICA, INC.

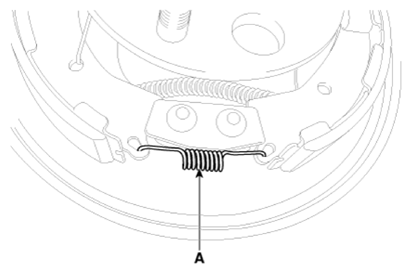

Remove the lower return spring (A).

Courtesy of KIA MOTORS AMERICA, INC.

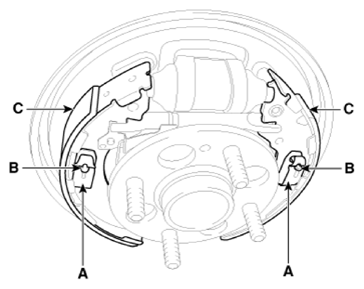

Remove the shoe hold springs (A) and shoe hold pins (B) and then remove brake shoe (C). Make sure not to damage the dust cover on the wheel cylinder.

Courtesy of KIA MOTORS AMERICA, INC.

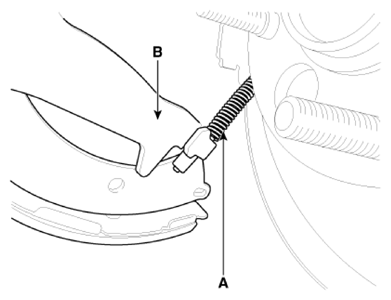

Remove the parking brake cable (A) and then remove brake shoe (B).

Courtesy of KIA MOTORS AMERICA, INC.

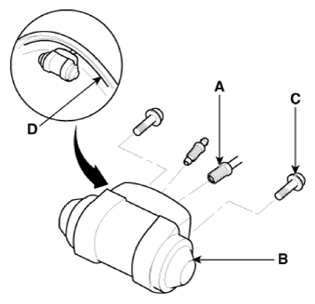

Disconnect brake tubes (A) from the wheel cylinder (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the bolts (C) and the wheel cylinder (B) from the backing plate (D).
