Removal And Installation

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery.
G 1.6 T-GDI GAMMA (Refer to Engine Electrical System - "BATTERY ")

G 2.0 MPI NU (ATKINSON) (Refer to Engine Electrical System - "BATTERY ")
Remove the engine control module (ECM).
G 1.6 T-GDI GAMMA (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

G 2.0 MPI NU (ATKINSON) (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
Remove the brake fluid from the master cylinder reservoir with a syringe.
NOTE: Do not spill brake fluid on the vehicle as it may damage the paint. If brake fluid comes in contact with the paint, wash off immediately with water.

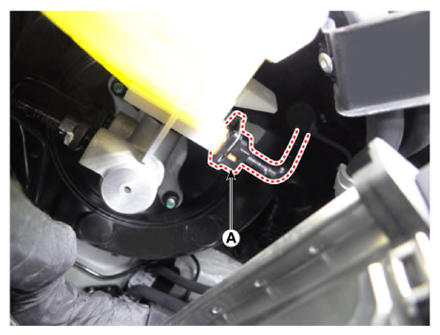

Disconnect the brake fluid level sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

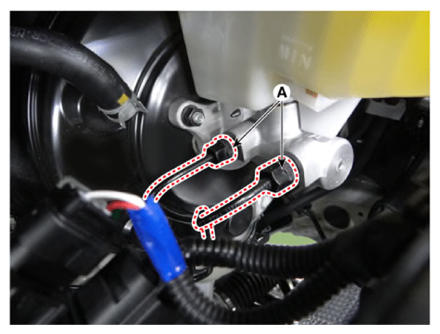

Disconnect the brake tube (A) from the master cylinder by loosening the tube flare nut.
Tightening torque:

ABS: 12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb.ft)

ESC: 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

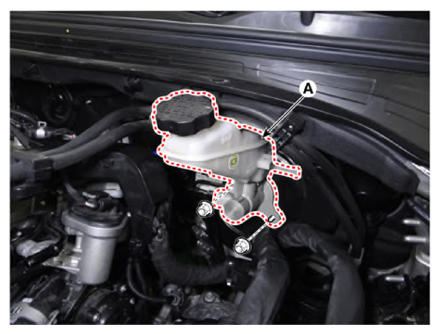

Remove the master cylinder (A) from the brake booster after loosening the mounting nuts.
Tightening torque:

9.8 - 15.7 N.m (1.0 - 1.6 kgf.m, 7.2 - 11.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

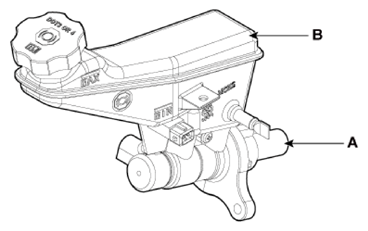

Remove the reservoir (B) from the master cylinder (A) after loosening the screw.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
After installation, bleed the brake system.
(Refer to BRAKE BLEEDING PROCEDURES Brake system - "Brake Bleeding Procedures")
