Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to bend or scratch the trim and panels.

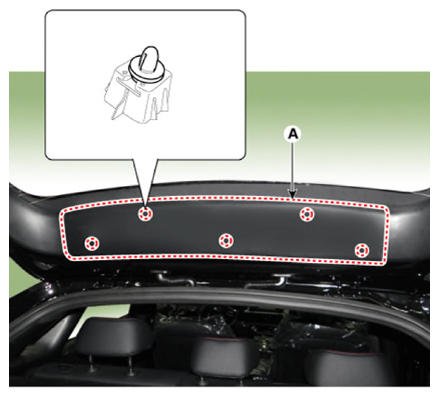

Using a screwdriver or remover, remove the tailgate upper trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

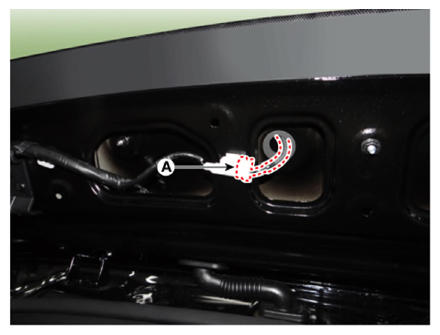

Disconnect the rear stop lamp connector (A)

Courtesy of KIA MOTORS AMERICA, INC.

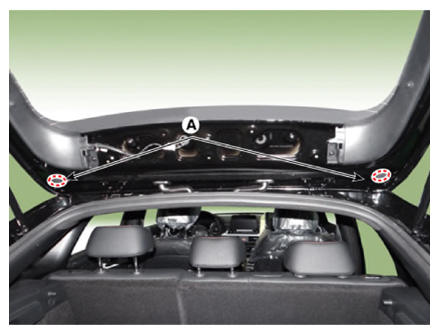

Remove the rear spoiler plug hole (A).

Courtesy of KIA MOTORS AMERICA, INC.

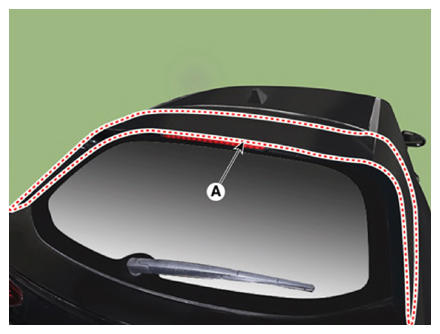

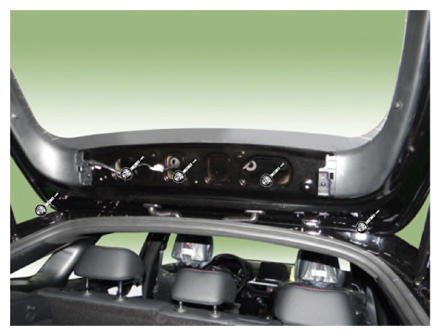

Loosen the mounting nuts and remove the rear spoiler (A).
Tightening torque:

5.9 - 6.4 N.m (0.6 - 0.65 kgf.m, 4.3 - 4.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

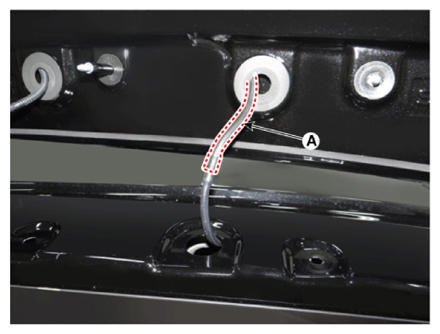

Remove the rear washer nozzle (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.

Information

Replace any damaged clips (or pin-type retainers).
Make sure the connector is connected properly.
