Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Remove the front tire.

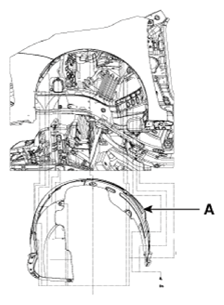

After loosening the mounting clips and screws, remove the front wheel guard (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.

Information

Replace any damaged clips (or pin - type retainers).
