Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

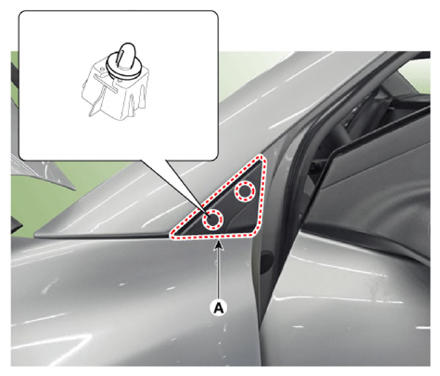

Using a screwdriver or remover, remove the delta garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.

Information

Replace any damaged clips (or pin - type retainers).
