Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

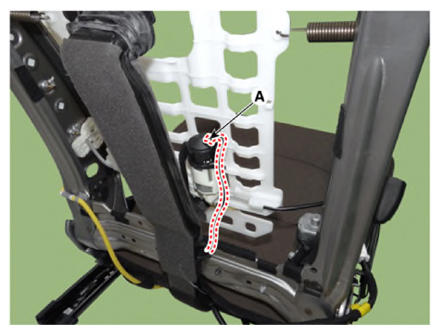

  2. Disconnect the connector (A) from lumbar support motor.
    G14564134Courtesy of KIA MOTORS AMERICA, INC.

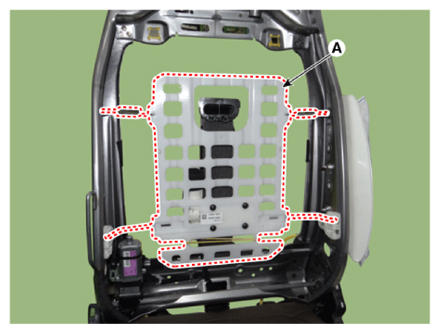

  3. Remove the lumbar support (A).
    G14564135Courtesy of KIA MOTORS AMERICA, INC.
