Deployment In A Vehicle Outside

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

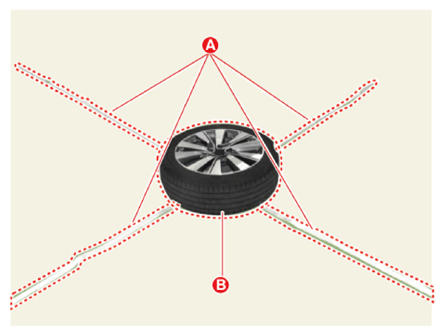

The wheel is equipped with a rope Thai after the (A) into a cross unfolded on the floor (B) Place the bottom.

Courtesy of KIA MOTORS AMERICA, INC.

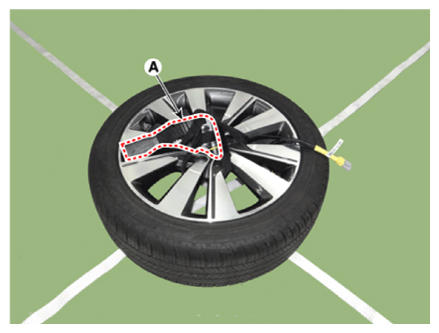

Fit the air bag module/pretensioner deployment adapter (A) (0K57A-3U100A).

Courtesy of KIA MOTORS AMERICA, INC.
To secure the air bag module/pretensioner (A) to the wheels.
[Airbag module]

Courtesy of KIA MOTORS AMERICA, INC.

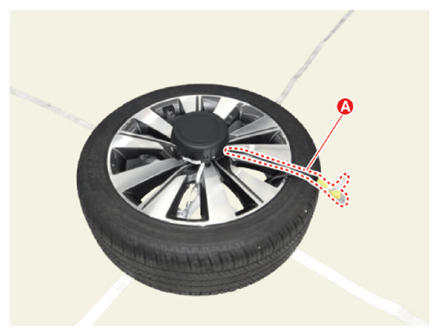

NOTE: The airbag module is equipped with the side to be deployed facing up

[Pretensioners]

Courtesy of KIA MOTORS AMERICA, INC.

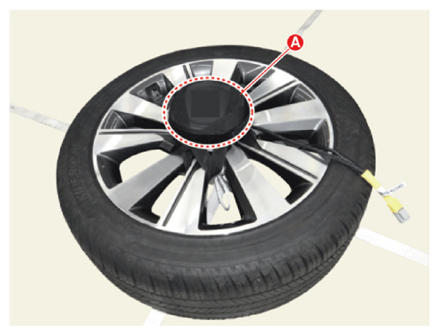

NOTE: The anchor pretensioner mounted towards the bottom end of the piston enforcement officers.

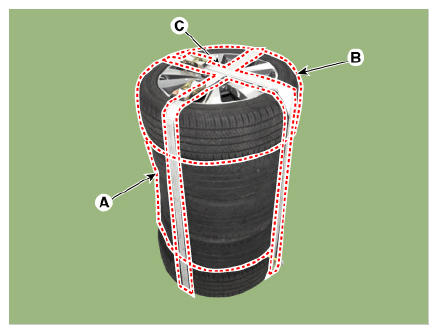

Raise the three tires (A) Increase the tire (B) mounted on the wheel thereon.
Using the ratcheted straps (C) to secure the tire.

Courtesy of KIA MOTORS AMERICA, INC.

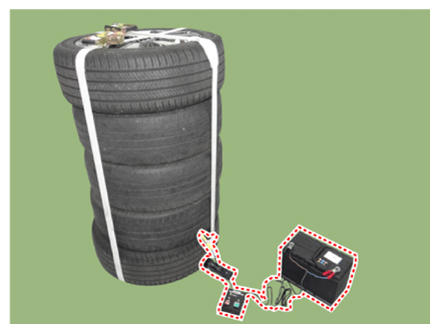

After connecting the battery, connect the air bag deployment tool for (0957A-34100A) on the deployment adaptor (0K57A-3U100A)

Courtesy of KIA MOTORS AMERICA, INC.

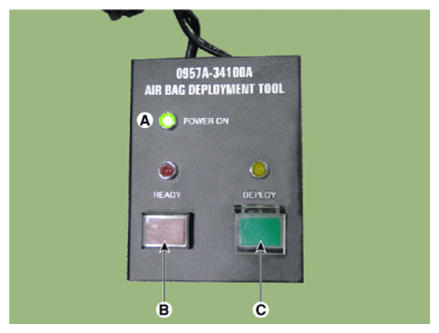

When after connecting the battery to the airbag deployment tools for lighting POWER ON (A), press the READY (B) by pressing the DEPLOY (C) thereby deploying the airbag.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When the air bag is great visually check that the noise generated when deployed, expanded and contracted sharply after slowly.

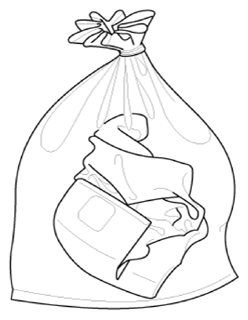

Safely sealed into the deploying air bag in a sturdy plastic bag and then superseding

Courtesy of KIA MOTORS AMERICA, INC.
