Deployed Within The Vehicle
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch to the battery (-) Remove the terminal and wait at least 3 minutes or more.
- Make sure that each of the airbag device is mounted securely
- The following should be ready to deploy the air bag device.
- Remove the 2-pin connector of the air bag to be deployed inside the vehicle
- Connect airbag adapter only.
- Remove the 2-pin connector on the driver's airbag and connect the adapter for deployment to Replace the steering wheel.
- The operator is positioned away from the vehicle at least 7m.

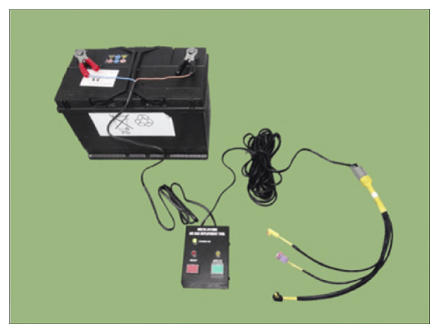

- Connect the special tool (0957A-34100A) for airbag deployment and the deployment adapters for connection to an external battery for deployment
- The battery (12V)
- special tool for airbag deployment (0957A-34100A)
- Adapter for deployment
- Driver Airbag, safety belts, passenger airbags, side airbags and curtain airbags pretensioner, anchor pretensioner (0K57A-3U100A)
- By operating the switch of a tool for deploying the air bag deployment thereby the air bag device.

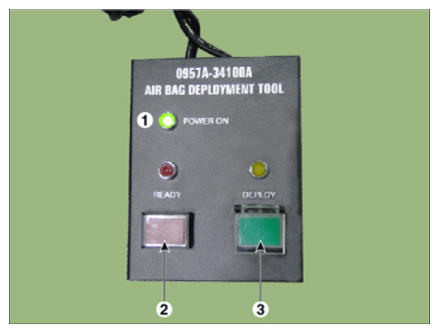

- When the top connected to a battery (12V), the POWER ON (1) is on.
- If, hold down the READY (2) READY (2) is lit, press DEPLOY (3) thereby deploying the airbag.

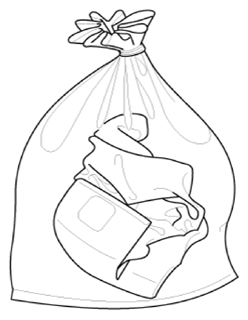

NOTE: When the air bag is great visually check that the noise generated when deployed, expanded and contracted sharply after slowly. - The airbag deployment is thus discarded after putting in a sturdy plastic bag and securely sealed
