Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.

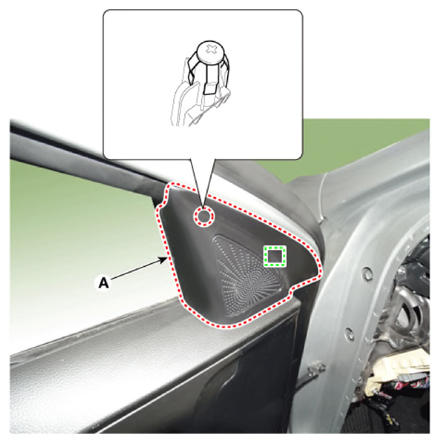

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

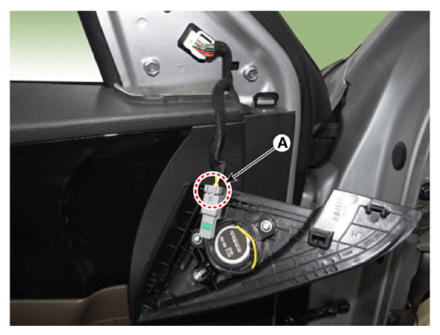

Disconnect the twitter speaker connector (A) and then remove the front door quadrant inner cover.

Courtesy of KIA MOTORS AMERICA, INC.

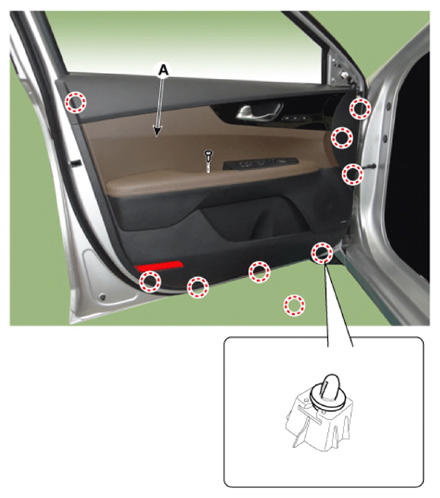

After loosening the mounting screw, remove the lower part of the front door trim (A) using a flat - tip screwdriver.

Courtesy of KIA MOTORS AMERICA, INC.

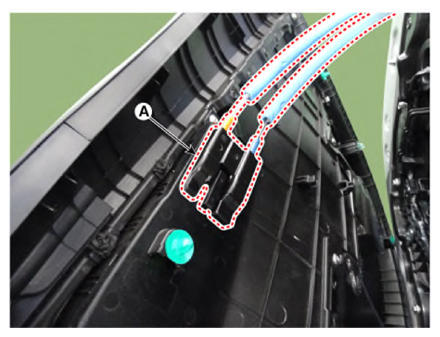

Remove the front door inside handle cage (A).

Courtesy of KIA MOTORS AMERICA, INC.

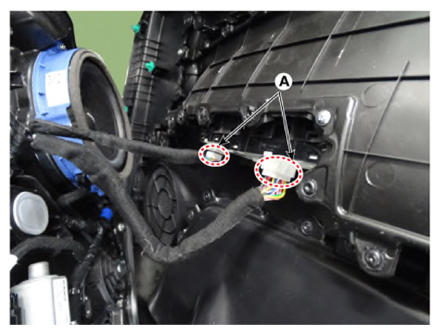

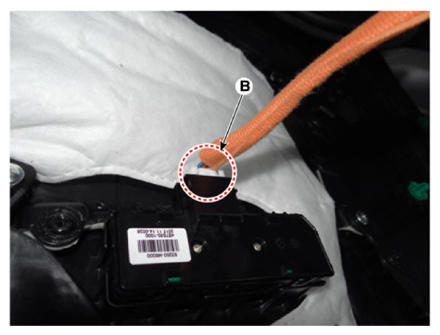

Disconnect the IMS switch connector (B) and power window switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.

Information

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips (or pin - type retainers).
Make sure the glass is operated properly.
