Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

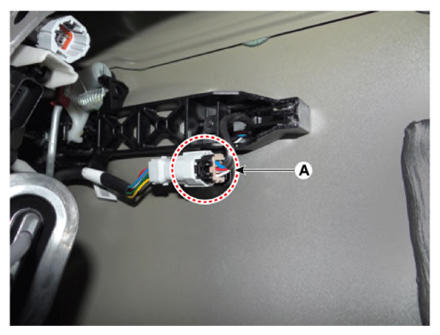

Disconnect the front door outside handle connector (A) by pushing the locking pin.

Courtesy of KIA MOTORS AMERICA, INC.

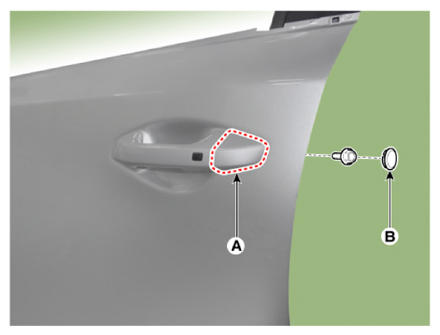

Remove the plug hole (B).
After loosening the mounting bolt, remove the front door lock assembly (A).
Tightening torque:

7.8 - 10.8 N.m (0.8 - 1.1 Kgf.m, 5.8 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

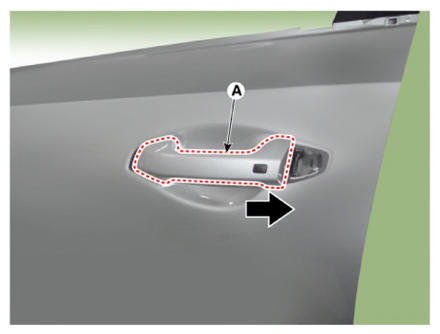

Remove the front door outside handle (A) by sliding it forward.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.

Information

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.

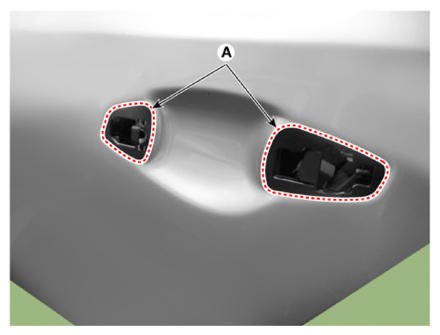

Be sure to install the outside handle pad (A) between the outside handle and the door panel.

Courtesy of KIA MOTORS AMERICA, INC.
