Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim.

    (Refer to Front Door - "FRONT DOOR TRIM ")

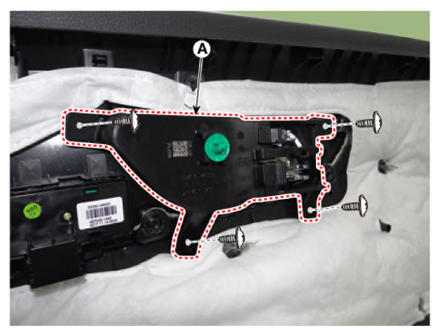

  2. After loosening the mounting screws, remove the front door inside handle (A).
    G14562204Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reverse the removal procedure.
NOTE:
  • Make sure the door locks/unlocks and opens/closes properly.
  • Replace any damaged clips (or pin - type retainers).
