Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

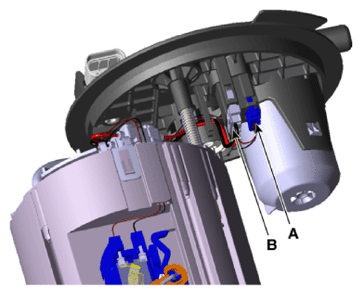

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G13307249Courtesy of KIA MOTORS AMERICA, INC.

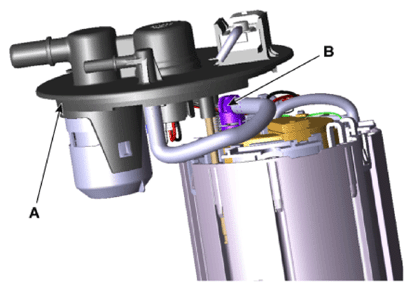

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G13307250Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the fuel sender (A) in the direction of an arrow.
    G13307251Courtesy of KIA MOTORS AMERICA, INC.

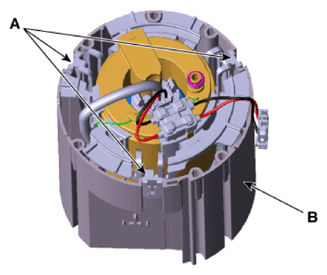

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G13307252Courtesy of KIA MOTORS AMERICA, INC.

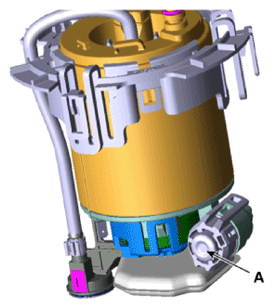

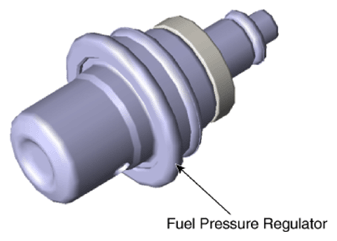

  7. Release the fixing hooks, and then remove the fuel pressure regulator (A).
    G13307253Courtesy of KIA MOTORS AMERICA, INC.
    G13307254Courtesy of KIA MOTORS AMERICA, INC.
