Engine Oil Schematics

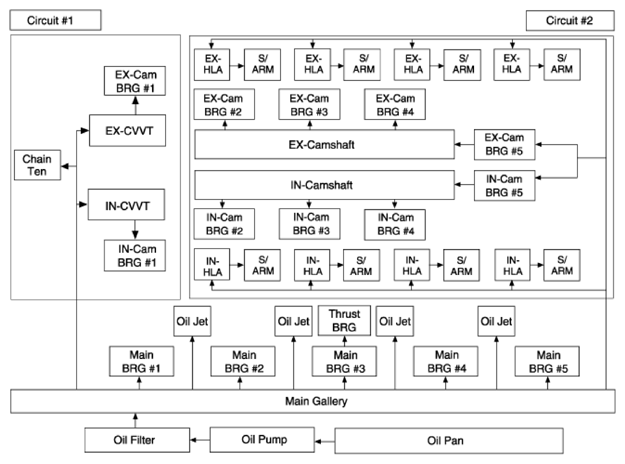

G13306822

Courtesy of KIA MOTORS AMERICA, INC.

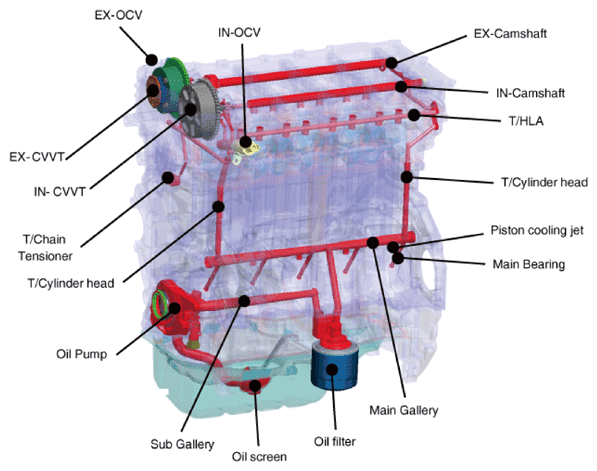

G13306823

Courtesy of KIA MOTORS AMERICA, INC.
