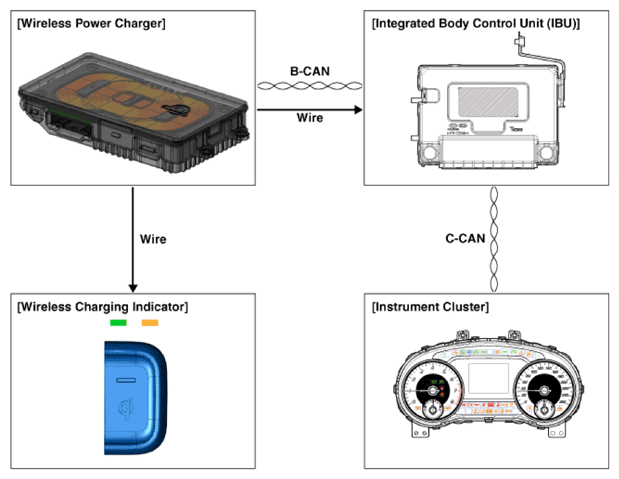

System Configuration Diagram

G13305833Courtesy of KIA MOTORS AMERICA, INC.
  1. Instrument cluster: Alerts about contact with mobile phone.
  2. Wireless charging indicator: Displays the charging status.
  3. Integrated body control unit (IBU):
    1. Determines contact with mobile phone.
    2. Stops charging during the activation of LF.
