Connector And Terminal Function

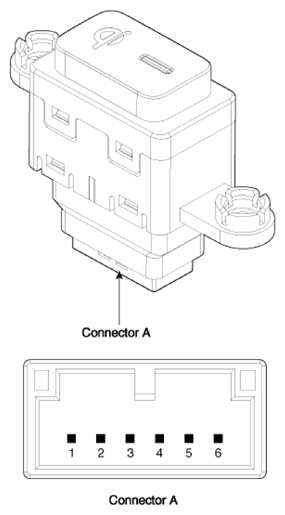

G13305849Courtesy of KIA MOTORS AMERICA, INC.
No. Description
1 Ground
2 LED charging lamp (Green)
3 LED charging lamp (Amber)
4 -
5 Illumination (-)
6 Illumination (+)
