Front USB Charger

NOTE:
  • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.

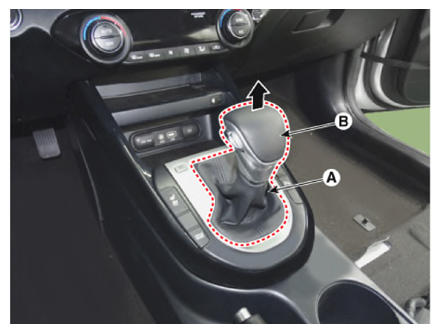

  2. Remove the knob (B) by pulling them in the direction of the arrow after separating the boots (A) from the console upper cover.
    G13305856Courtesy of KIA MOTORS AMERICA, INC.

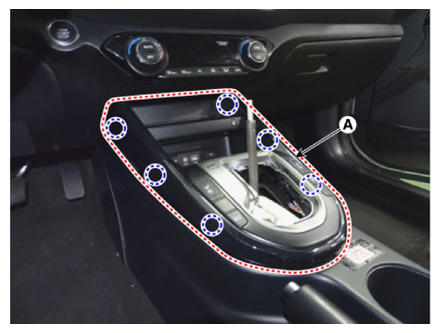

  3. Remove the console upper cover (A).
    G13305857Courtesy of KIA MOTORS AMERICA, INC.

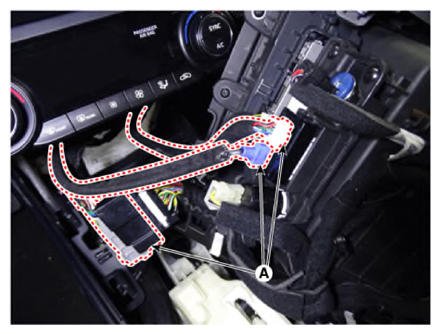

  4. Disconnect the connector (A) from the console upper cover.
    G13305858Courtesy of KIA MOTORS AMERICA, INC.

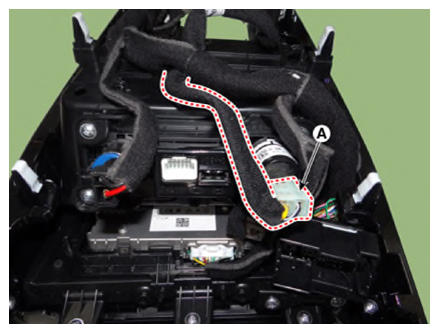

  5. Disconnect the connector (A) from the USB charger.
    G13305859Courtesy of KIA MOTORS AMERICA, INC.

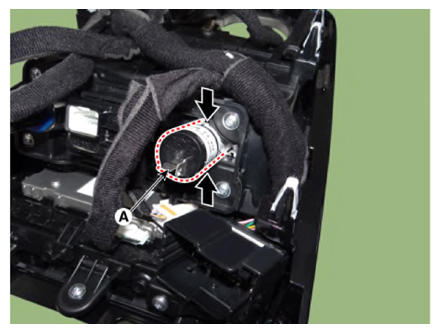

  6. Remove the USB charger (A) by pressing the fixing hooks.
    G13305860Courtesy of KIA MOTORS AMERICA, INC.
