Battery Test Procedure

Connect the tester to the battery.

Black clamp to battery negative (-) terminal.

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION:

Connect clamps securely. If "CHECK CONNECTION" message is displayed on the screen, reconnect clamps securely.

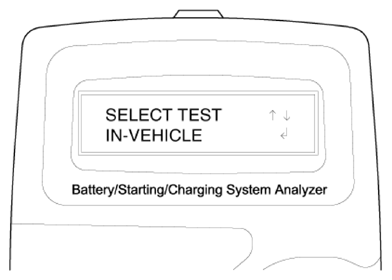

The tester will ask if the battery is connected "IN-VEHICLE" or "OUT-OF-VEHICLE". Make your selection by pressing the arrow buttons; then press ENTER.

Courtesy of KIA MOTORS AMERICA, INC.

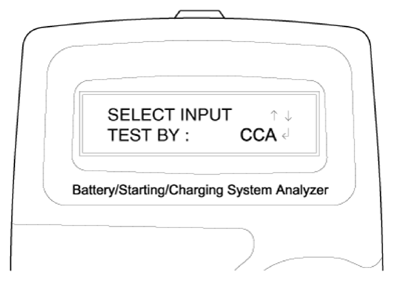

Select CCA and press the ENTER button.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- CCA: Cold cranking amps, is an SAE specification for cranking batteries at -0.4°F (-18°C).

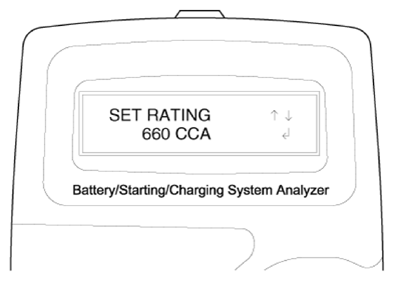

Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up and down buttons and press ENTER.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on battery label.

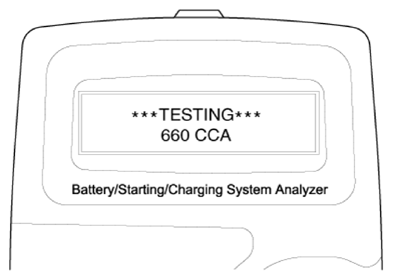

The tester will conduct battery test.

Courtesy of KIA MOTORS AMERICA, INC.

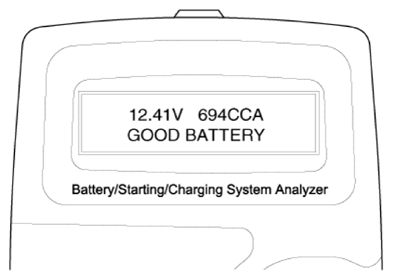

The tester displays battery test results including voltage and battery ratings.
Refer to the following table and take the appropriate action as recommended by the Micro 570.

Courtesy of KIA MOTORS AMERICA, INC.
